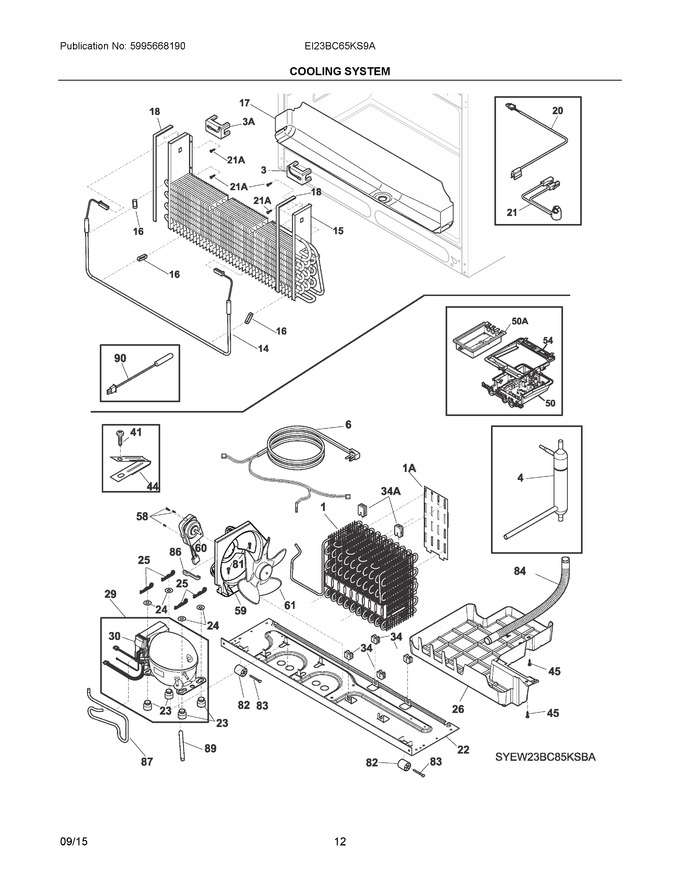

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241862903 | Condenser |
|
$ 131.12 | |||||
| 3 | 241838401 | Block-evap Coil, Styrofoam Insul, Rh |
|
$ 20.48 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047603) |
|
Immediately | $ 31.67 | ||||
| 6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 38.68 | ||||
| 14 | 5303918410 | Defrost Heater Kit, 28' |
|
Immediately | $ 123.31 | ||||
| 15 | 5303918569 | Evaporator Kit, C/d Fdbm |
|
Immediately | $ 270.88 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241791201 | Trough-drain |
|
$ 109.15 | |||||
| 18 | 241860131 | Gasket, Closed Cell (Replaces: 241860101) |
|
Immediately | $ 5.54 | ||||
| 20 | 808137001 | Thermistor, Defrost Temp |
|
Immediately | $ 34.72 | ||||
| 21 | 5304521781 | Thermostat, Defrost Safety (Replaces: 808062701) |
|
Immediately | $ 42.23 | ||||
| 22 | 241602112 | Base-compressor, W/rollers |
|
$ 277.83 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 8.51 | |||||
| 26 | 241920608 | Pan-defrost (Replaces: 241920604) |
|
$ 140.45 | |||||
| 29 | 5304475104 | Compressor, W/inverter, Hard Wired, And Grommets (Replaces: 242104102) |
|
$ 825.22 | |||||
| 30 | 5304512686 | Invertor (Replaces: 242104302) |
|
Immediately | $ 442.32 | ||||
| 34 | 241929901 | Grommet-cond Mtg, (4) |
|
$ 9.22 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 50 | 5304499078 | Board-main Power, Board & Housing, 50 # |
|
$ 282.79 | |||||
| 54 | 807854301 | Support, Housing, Main Board |
|
$ 45.36 | |||||
| 58 | 240569201 | Screw, 8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 138.56 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 81 | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830904 | Tube-drain |
|
Immediately | $ 23.39 | ||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 67.49 | |||||
| 87 | 241871501 | Tube-connector, Suction |
|
$ 42.53 | |||||
| 89 | 5303918910 | Tube-process (Replaces: 215346900) |
|
- | |||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 1A | 241987301 | Deflector-air, Condenser |
|
$ 26.94 | |||||
| 21A | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 34A | 241929902 | Grommet-cond Mtg, (4) |
|
$ 9.22 | |||||
| 3A | 241838402 | Block-evap Coil, Styrofoam Insul, Lh |
|
$ 19.85 | |||||
| 50A | 241891611 | Board-main, Led |
|
$ 283.45 | |||||
| NI | 241947701 | Spacer, Heat Exchanger |
|
$ 100.11 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| NIA | 808165201 | Harness, Wiring, Machine Compt. |
|
$ 191.11 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 29.77 | |||||
| NIAA | 241852501 | Clip, Wiring Harness |
|
$ 15.60 |
