EI23BC65KS9A | TransGlobal : Appliance Model Lookup

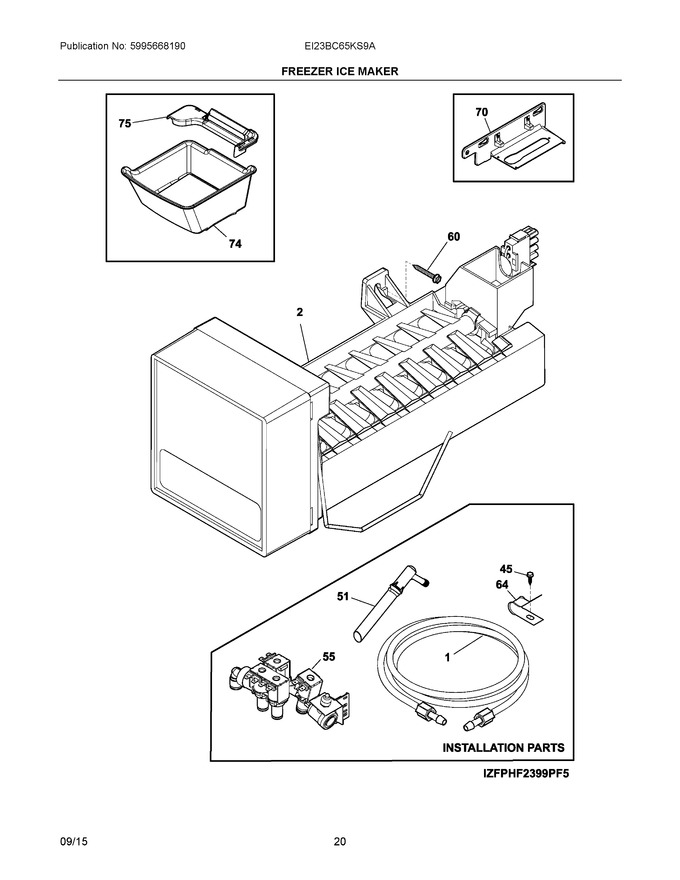

Diagram #	Part Number	Description	Availability	Ships	Price
1	218976435	Tube-water Inlet, 5/16 - 59", Yellow, Cd			$ 20.56
2	5303918493	Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798219)		Immediately	$ 231.95
45	5304455650	Screw, Hex Washer Head, 8-15a X 0.625, Low Profile			$ 14.18
51	242169404	Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension	Appelez-nous	-
55	242253002	Valve-water, Quad Solenoid		Immediately	$ 244.75
60	5304455852	Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328)			$ 12.76
64	5304453921	Clamp-cable	Appelez-nous	-
70	242053001	Bracket-ice Maker			$ 51.03
74	242128001	Container-ice			$ 194.90
75	242240101	Shield, Ice Bucket, Wide			$ 76.92
NI	240396802	Clamp, Tube/wiring, Nylon, Black/natural	Appelez-nous	-
NI	241503901	Connector-water, Straight, 5/16 To 1/4			$ 51.22
NI	241806601	Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001)		Immediately	$ 70.56
NIA	218709101	Screw, Hex Head, 10-32 X 0.500			$ 6.38
NIA	240555002	Screw, Hex Washer Head, 8-32t X 0.375 (Replaces: 241690701)		Immediately	$ 13.46
NIA	5303918571	Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403)			$ 164.24
NIB	240363602	Screw-shoulder			$ 13.65
NIB	241920106	Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104)		Immediately	$ 60.67
NIC	241964707	Tube-water, 1/4 - 36", Green		Immediately	$ 18.43
NID	241965906	Tube-water, 5/16 - 67", Natural		Immediately	$ 24.10
NIE	242200102	Clip, Tubing, 90 Deg Elbow (Replaces: 242200101)			$ 10.63
NIF	242200102	Clip, Tubing, 90 Deg Elbow			$ 10.63
NIG	242220112	Tube-water, .315 - 51", Brown/tan			$ 19.85
NIH	242220113	Tube-water, .315 - 51", Natural			$ 18.44
