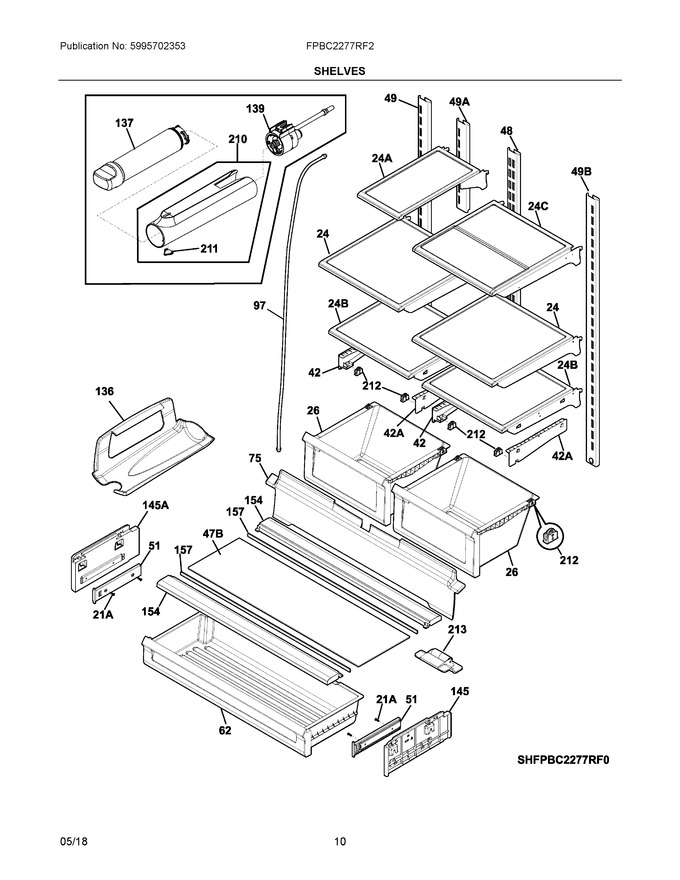

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 242068704 | Shelf, Sliding, Cantilever, "spill-safe |
|
$ 191.94 | |||||
| 26 | 241801813 | Pan-crisper, (2) |
|
$ 80.80 | |||||
| 42 | 242079401 | Support, Crspr Pan Rolle |
|
Immediately | $ 31.19 | ||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 242122202 | Channel-shelf Mtg, Side, Lh |
|
$ 67.33 | |||||
| 51 | 242120001 | Slide-deli |
|
Immediately | $ 165.85 | ||||
| 62 | 242096815 | Pan-deli (Replaces: 242096813) |
|
$ 169.65 | |||||
| 75 | 242072704 | Shield-light, Refr |
|
$ 117.66 | |||||
| 97 | 242220119 | Tube-water, .75 X 97.5", Natural |
|
Immediately | $ 30.47 | ||||
| 136 | 241657701 | Dispenser-can, White |
|
$ 57.41 | |||||
| 137 | 807946701 | Filter Assembly, Puresource U-ii, W/cap |
|
- | |||||
| 139 | 5304522623 | Manifold, Water Filter (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 145 | 242120101 | Support, Rail |
|
$ 76.59 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 210 | 5303918723 | Housing, Water Filter, W/plug & Pad |
|
Immediately | $ 26.23 | ||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 212 | 242236801 | Roller Assembly, Crisper Pan |
|
Immediately | $ 21.99 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 242120102 | Support, Rail |
|
$ 72.30 | |||||
| 21A | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| 24A | 242200502 | Shelf-"spill-safe", Cantilever, 1/4 Width, Flip Up |
|
$ 201.73 | |||||
| 24B | 242068706 | Shelf, Fixed, Spill Safe |
|
Immediately | $ 212.35 | ||||
| 24C | 242235502 | Shelf-"spill-safe", Cantilever, Half Width, Slide Under |
|
$ 241.92 | |||||
| 42A | 242079402 | Support, Crspr Pan Rolle |
|
Immediately | $ 43.10 | ||||
| 47B | 242082304 | Glass, Deli Cover |
|
$ 150.97 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 77.97 | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NI | 5304501184 | Energy Guide |
|
- | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NIA | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | A13402902 | Bypass Assembly, No Filter, Optional Part (Replaces: 807946702) |
|
Immediately | $ 104.38 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NIA | 241695904 | Screw |
|
$ 14.41 | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 |
