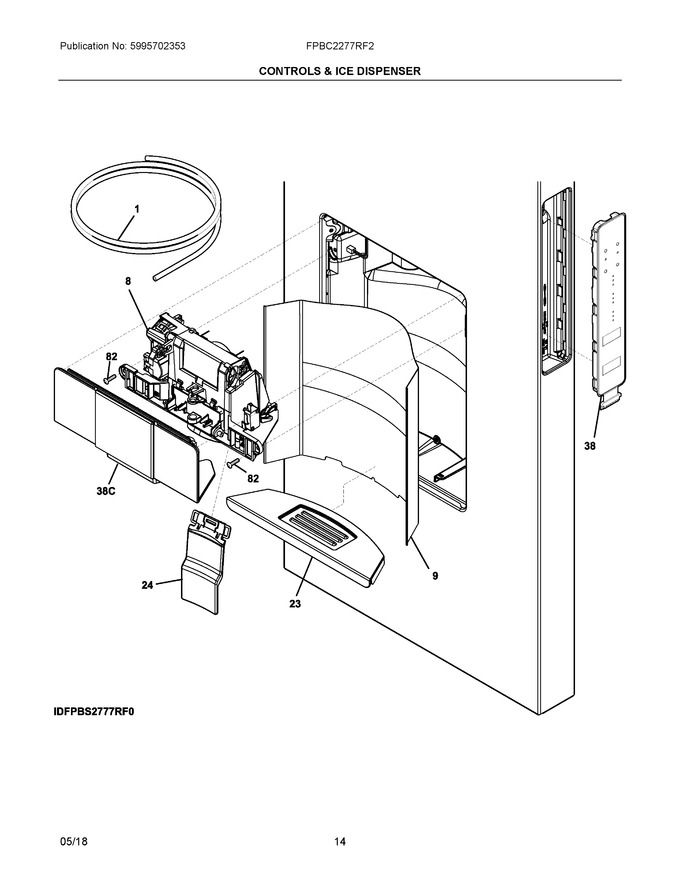

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
$ 20.56 | |||||
| 8 | 5303918773 | Module Assembly, Ice & Water, Complete (Replaces: 242270203) |
|
Immediately | $ 255.12 | ||||
| 9 | 809089801 | Liner, Sump Back, Stainless |
|
$ 194.90 | |||||
| 23 | 5304501179 | Sump Assembly, Ice & Water, Stainless |
|
$ 170.63 | |||||
| 24 | 5304501181 | Actuator, Ice Lever, Silver |
|
$ 100.86 | |||||
| 38 | 242048229 | User Interface,, Assembly, Black, W/board & Pad |
|
Immediately | $ 296.81 | ||||
| 82 | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| 38C | 809091203 | Control Assembly, Dispenser Uib, Stanless/black, W/touch Pad (Replaces: 809091201) |
|
$ 387.41 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304501175 | Harness, Wiring, Dispenser, To Watson Cntl. |
|
$ 38.28 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 5303918744 | Kit,dspnsr Heater,dc |
|
$ 203.24 | |||||
| NI | 242040806 | Harness-wiring, Door |
|
$ 42.53 | |||||
| NIA | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIB | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 18.43 | ||||
| NIC | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 24.10 | ||||
| NID | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| NIE | 242220119 | Tube-water, .75 X 97.5", Natural |
|
Immediately | $ 30.47 | ||||
| NIF | 242220204 | Tube-water Inlet, .315 - 93.50", Natural |
|
Immediately | $ 40.32 |
