SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System

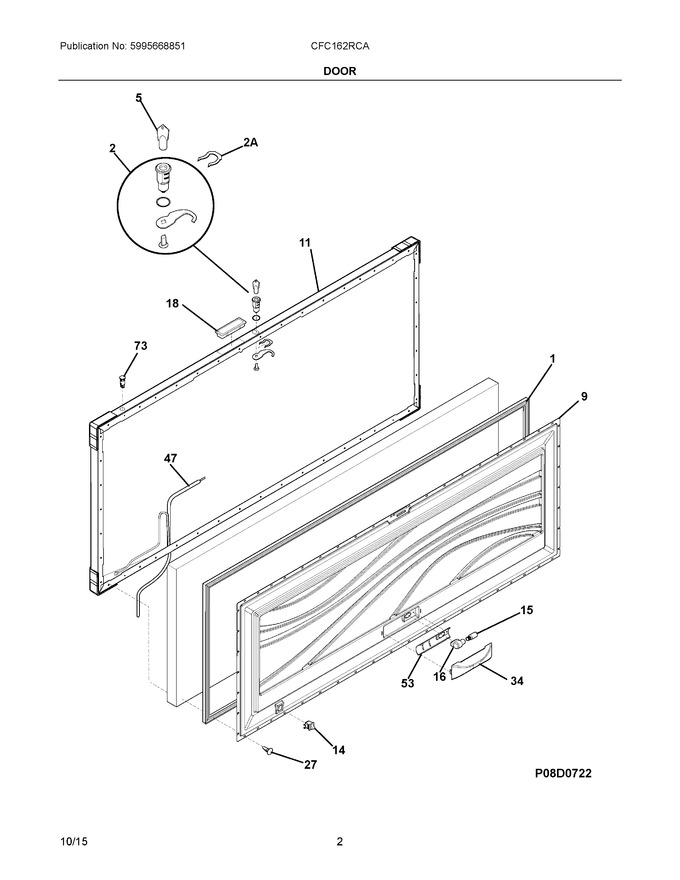

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481304		Gasket-door, Black		Appelez-nous	-
2	297090100		Lock Assy				$ 21.27
5	297147700		Key, Lock			Immediately	$ 7.57
9	297376000		Panel-inner Door, Frzr				$ 138.57
11	5304503772		Lid, Assy		Appelez-nous	-
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light, Led   (Replaces: 5304495326)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	297034201		Handle, Recessed, Black, Includes Gasket				$ 14.12
27	5303212828		Clip, Panel Mtg				$ 16.63
34	297438600		Sheild, Light				$ 178.61
47	5304504154		Wiring Harness, Lid/defrost, With Light   (Replaces: 216819900)				$ 85.76
53	5304493988		Shield, Heat				$ 14.89
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
2A	297090900		Clip, Spring				$ 10.85
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	5303925098		Insulation				$ 120.65
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83

    View Diagram in Separate Window       Print Part List
