SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

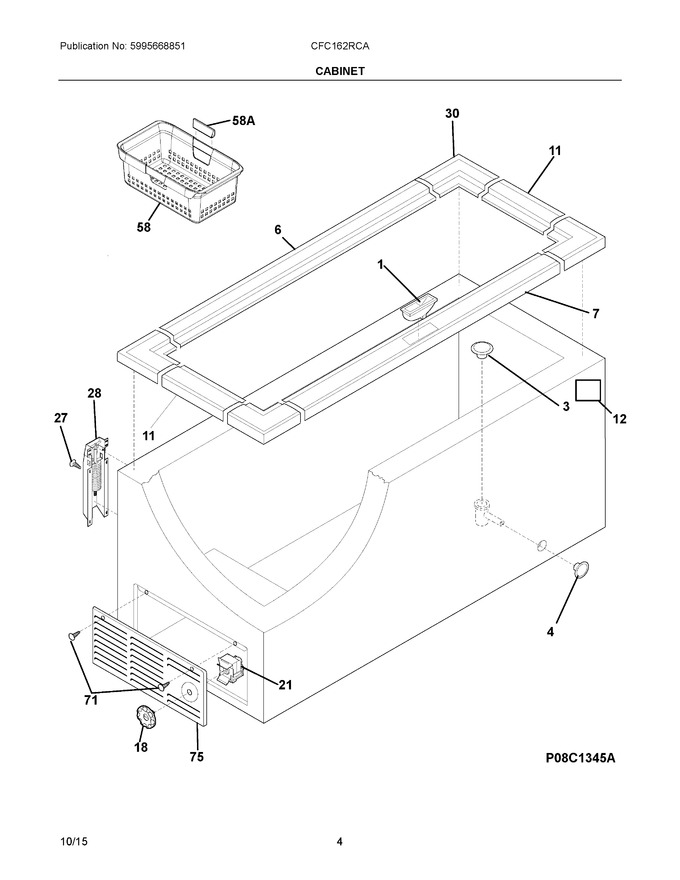

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954501		Catch-lock, Black		Appelez-nous	-
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013606		Plug-button, Black				$ 11.34
6	808118506		Breaker, No Lock		Appelez-nous	-
7	808118512		Breaker, W/lock		Appelez-nous	-
11	808118502		Breaker, End		Appelez-nous	-
18	216873600		Knob-control		Appelez-nous	-
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
27	216629601		Screw, Hex Washer Head, 10-16 X 0.500, Tapping				$ 13.01
28	297321902		Hinge Assy		Appelez-nous	-
30	5304493670		Breaker, Corner		Appelez-nous	-
58	297404101		Basket, Chest, White, Upper				$ 129.47
71	5303302714		Screw, #8-18 X .75		Appelez-nous	-
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
75	216034303		Panel-access, Black		Appelez-nous	-
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
12A	5304502901		Nameplate		Appelez-nous	-
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	5304502835		Energy Guide		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NIA	808408301		Clip, Basket Handle, Blue				$ 21.27
NIC	808408304		Clip, Basket Handle, Red				$ 21.27

    View Diagram in Separate Window       Print Part List
