SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet Front

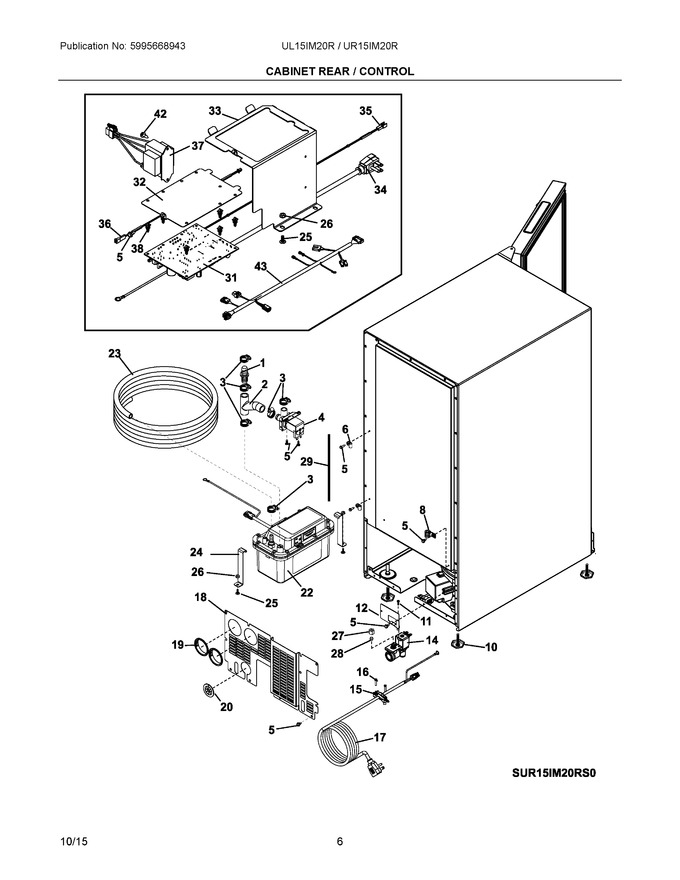

04 - Cabinet Rear / Control


05 - Cooling System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304503816		Connector, Drain		Appelez-nous	-
2	5304503817		Tube, Drain		Appelez-nous	-
3	5304503818		Clamp, Hose		Appelez-nous	-
4	5304503819		Valve, Drain				$ 373.12
5	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
6	5304503820		Clamp, P		Appelez-nous	-
8	5304503821		Clamp, Cord		Appelez-nous	-
10	5304496730		Leg, Leveler				$ 74.08
11	5304503822		Screw, Phl Head, #6-32 X 1/2", Machine		Appelez-nous	-
12	5304503823		Bracket, Mounting, Water Valve		Appelez-nous	-
14	5304503824		Valve, Water Supply				$ 140.34
15	5304496764		Clamp, Power Cord, W/screws		Appelez-nous	-
16	5304503825		Screw, Phl Head 25, #8 X 5/8		Appelez-nous	-
17	5304503826		Cord, Power		Appelez-nous	-
18	5304503827		Cover, Access		Appelez-nous	-
19	5304503828		Bushing, Snap, Heyco		Appelez-nous	-
20	5304496738		Grommet, Heyco		Appelez-nous	-
22	5304503829		Drain Pump, Assembly				$ 1,782.32
23	5304503830		Hose, Drain, 20 Ft		Appelez-nous	-
24	5304503831		Bracket, Hold Down, Drain Pump		Appelez-nous	-
25	5304496794		Bolt, Carriage, #10-24 X 1/2		Appelez-nous	-
26	5304496793		Nut, Hex, #10-24		Appelez-nous	-
27	5304503832		Nut, Commpression		Appelez-nous	-
28	5304503833		Sleeve, Compression				$ 196.04
29	5304503834		Tube, Vent		Appelez-nous	-
31	5304503835		Control, Assembly, Saturn Ii				$ 742.06
32	5304503836		Bracket, Mounting, Control		Appelez-nous	-
33	5304503837		Bracket, Mounting, Control		Appelez-nous	-
34	5304503838		Cord, Service, Drain Pump		Appelez-nous	-
35	5304503839		Harness, Wiring, Led Light Ext		Appelez-nous	-
36	5304503840		Harness, Wiring, Door Sensor Ext		Appelez-nous	-
37	5304503841		Transformer, Gc, 15cl				$ 244.20
38	5304503842		Stand Off, Control		Appelez-nous	-
42	5304503843		Screw, Phl Pan Head, #10-32 X 5/16		Appelez-nous	-
43	5304503844		Harness, Wiring, Mechanical, Saturn Ii		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
