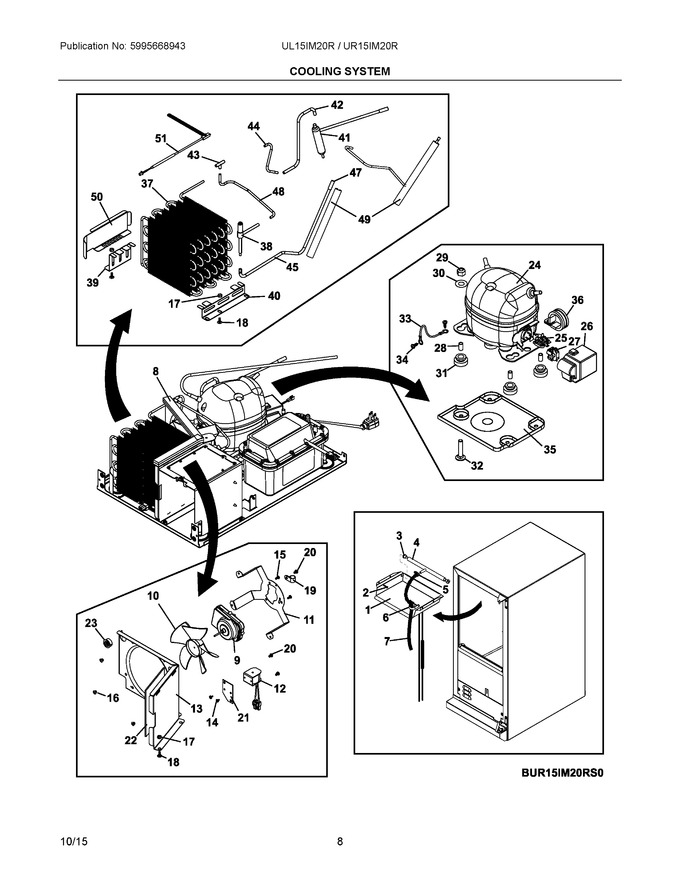

05 - Cooling System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304503845		Evaporator, Assembly		Appelez-nous	-
2	5304503791		Screw, Machine, #10-32 X 1		Appelez-nous	-
3	5304503847		End, Distributor, (2)		Appelez-nous	-
4	5304503848		Tube, Distributor, (incl 3, 5, 7)		Appelez-nous	-
5	5304503849		Clamp, Hose, White		Appelez-nous	-
6	5304503850		Clamp, P, 1-3/16" Dia		Appelez-nous	-
7	5304503851		Tube, Fill, (incl 5)		Appelez-nous	-
8	5304496783		Pad, Foam, (3 Required)				$ 20.48
9	5304496779		Motor, Fan				$ 497.91
10	5304496782		Blade, Fan Motor				$ 65.16
11	5304496781		Bracket, Fan Motor Mtg.				$ 38.12
12	5304503852		Solenoid, Coil		Appelez-nous	-
13	5304503853		Shroud, Condenser Fan		Appelez-nous	-
14	5304503854		Screw, Phl Pan Head, M4 X .7 X 5.0		Appelez-nous	-
15	5304496778		Screw, Ph Pan Head, #8-32 X 3/8		Appelez-nous	-
16	5304503855		Rivet, Pop, 3/16		Appelez-nous	-
17	5304496793		Nut, Hex, #10-24		Appelez-nous	-
18	5304496794		Bolt, Carriage, #10-24 X 1/2		Appelez-nous	-
19	5304503856		Clamp, P		Appelez-nous	-
20	5304503843		Screw, Phl Pan Head, #10-32 X 5/16		Appelez-nous	-
21	5304503857		Plate, Mounting		Appelez-nous	-
22	5304503858		Pad, Foam		Appelez-nous	-
23	5304503859		Bushing, Heyco		Appelez-nous	-
24	5304503860		Compressor, Assembly, Incl 25 Thru 33		Appelez-nous	-
25	5304503861		Overload		Appelez-nous	-
26	5304503862		Cover, Electrical		Appelez-nous	-
27	5304503863		Starter		Appelez-nous	-
28	5304496775		Sleeve		Appelez-nous	-
29	5304496772		Nut, Lock, 1/4-20 Hex		Appelez-nous	-
30	5304496773		Washer, Flat		Appelez-nous	-
31	5304496774		Grommet		Appelez-nous	-
32	5304496776		Bolt, Carriage, 1/4-20 X 1-1/4		Appelez-nous	-
33	5304496777		Wire, Ground		Appelez-nous	-
34	5304496842		Screw, Ph Pan Head, #8-21 X 1/4		Appelez-nous	-
35	5304503864		Pan, Defrost		Appelez-nous	-
36	5304503865		Clamp		Appelez-nous	-
37	5304503866		Condenser, Tube & Wire, 15cl		Appelez-nous	-
38	5304503867		Valve, Hot Gas		Appelez-nous	-
39	5304503868		Bracket, Condenser Mtg, 15", Lh		Appelez-nous	-
40	5304503869		Bracket, Condenser Mtg, 15", Rh		Appelez-nous	-
41	5304496789		Drier, Filter				$ 149.36
42	5304503870		Tube, Jumper, 15cl, Cond To Drier		Appelez-nous	-
43	5304503871		Tee, Fitting, 3/16, Copper		Appelez-nous	-
44	5304503872		Tube, Jumper, 15cl, Cond To Comp		Appelez-nous	-
45	5304503873		Tube, Jumper, Valve To Evap		Appelez-nous	-
47	5304503874		Cap, Plug, 1/4 X 7/8		Appelez-nous	-
48	5304503875		Tubing, T Ftng To Drier		Appelez-nous	-
49	5304503876		Insulation		Appelez-nous	-
50	5304503877		Shield, Commun. Harness, (lh Swing Only)		Appelez-nous	-
51	5304503878		Sensor, Discharge		Appelez-nous	-
NIA	5304503846		Evaporator, No Tubing, Or Accumulator		Appelez-nous	-
