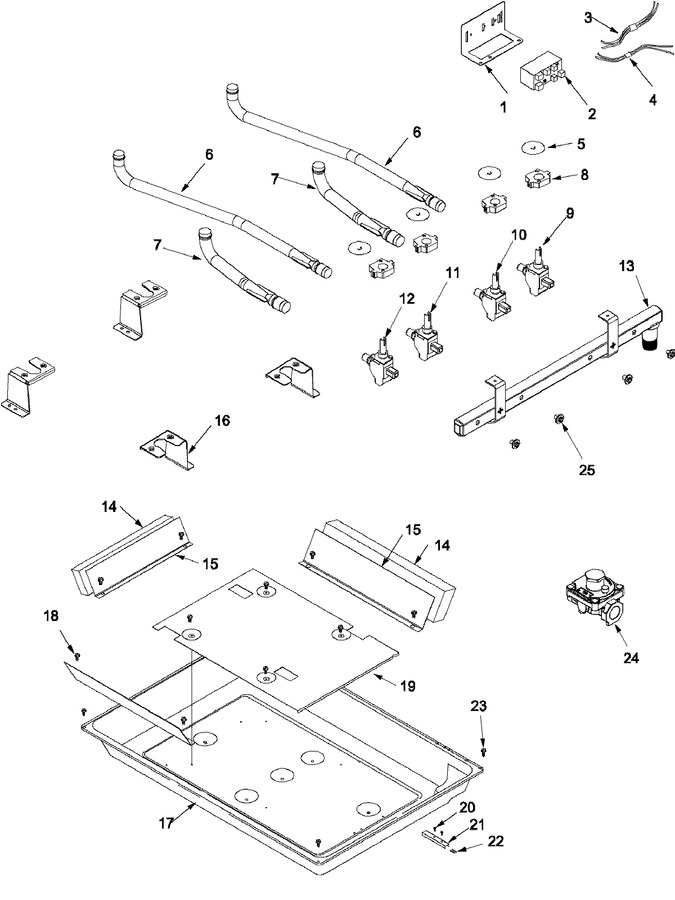

01 - Burner Box


02 - Main Top


03 - Supplemental Information


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0315097		Brkt, Spark Module		Appelez-nous	-
2	31962701		Spark Module				$ 139.34
3	31941701		Harness, Ignition Wire 20``		Appelez-nous	-
4	31941601		Harness, Ignition Wire 31``		Appelez-nous	-
5	Y0314316		Shield, Switch		Appelez-nous	-
6	31899701		Venturi, Left		Appelez-nous	-
7	31899601		Venturi, Right		Appelez-nous	-
8	Y0316705		Switch, Spark (270 Deg)				$ 56.54
9	31759502		Valve, Top Burner (9.7k)		Appelez-nous	-
10	31759503		Valve, Top Burner (7.6k)		Appelez-nous	-
11	31759502		Valve, Top Burner (9.7k)		Appelez-nous	-
12	31891901		Valve, Top Burner (12.5k)				$ 124.04
13	77001070		Manifold Pipe		Appelez-nous	-
14	31974701		Insulation, Burner Box		Appelez-nous	-
15	Y0316984		Shield, Burner Box-side		Appelez-nous	-
16	Y0315640		Brkt, Venturi Mtg		Appelez-nous	-
17	31950901		Burner Box, 30`` Gas Cktp		Appelez-nous	-
18	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
19	Y0316983		Shield, Burner Box-bottom		Appelez-nous	-
20	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
21	Y0305003		Bracket-insulation		Appelez-nous	-
22	Y0304999		Clip, Tinnerman		Appelez-nous	-
23	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
24	77001068		Pressure Regulator		Appelez-nous	-
25	31750703		Screw, Valve (blk)		Appelez-nous	-
NI	31750603		Screw, 1/4-20 X 2 1/2``		Appelez-nous	-
NI	Y0308941		Seal, Inlet		Appelez-nous	-
NI	Y0042109		Strain Relief		Appelez-nous	-
NI	31909101		Sealant, Pipe (lp & Nat)		Appelez-nous	-
NI	Y0316704		Cord, Power Supply		Appelez-nous	-
NI	77001216		Wire Harness-ignition Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
