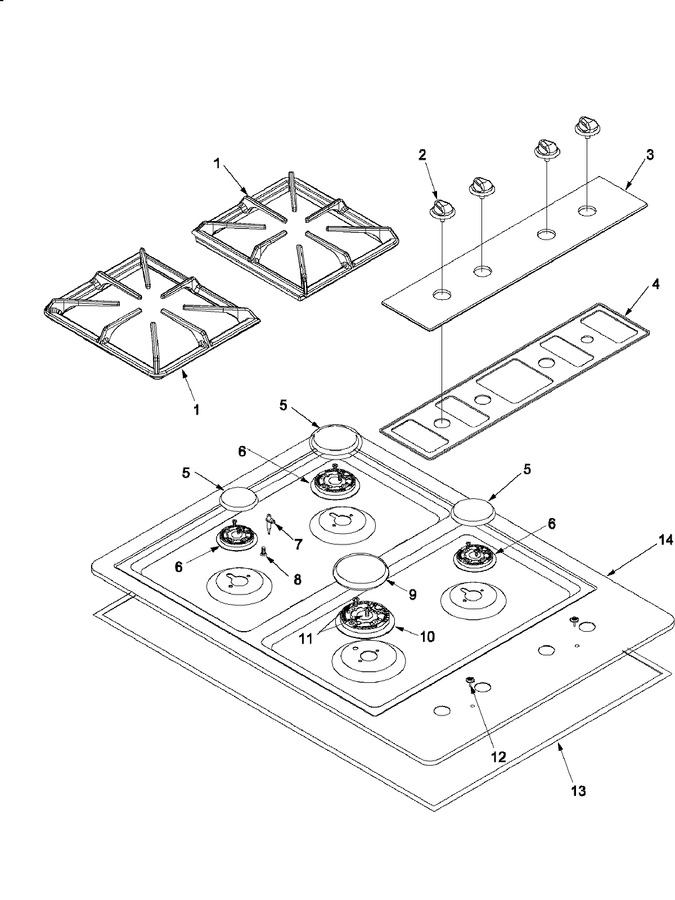

01 - Burner Box
02 - Main Top
03 - Supplemental Information
04 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 32012201MB | Grate, Single Cast (matte Blk) |
|
- | |||||
| 2 | WP31905407B | Knob, Top Burner Valve (blk) (Replaces: 31905407B) |
|
$ 20.89 | |||||
| 3 | 31688701B | Glass, Control Panel (blk) |
|
- | |||||
| 4 | 316399B | Frame-control Pnl Glass (blk) |
|
- | |||||
| 5 | 31782601MB | Cap, Burner 9k (matte Blk) |
|
- | |||||
| 6 | WPY0315768 | Top Burner (medium 9k) (Replaces: Y0315768) |
|
$ 128.48 | |||||
| 7 | WPY0316773 | Electrode, Spark Ignition (Replaces: Y0316773) |
|
Immediately | $ 37.13 | ||||
| 8 | Y0316775 | Screw, Electrode |
|
- | |||||
| 9 | 31782701MB | Cap, Burner 12/13k (matte Blk) |
|
$ 35.43 | |||||
| 10 | Y0315767 | Top Burner (large 12/13k) |
|
- | |||||
| 11 | WPY04100059 | Screw, No.6-20 X .750 Pan Hd Ph (Replaces: 31750320) |
|
$ 6.96 | |||||
| 12 | 31750719 | Screw, No.8-18 X .500 Ab (blk) |
|
- | |||||
| 13 | Y0301012 | Seal |
|
- | |||||
| 14 | 32012501B | Main Top-30`` Gas Cooktop (blk) |
|
- |
