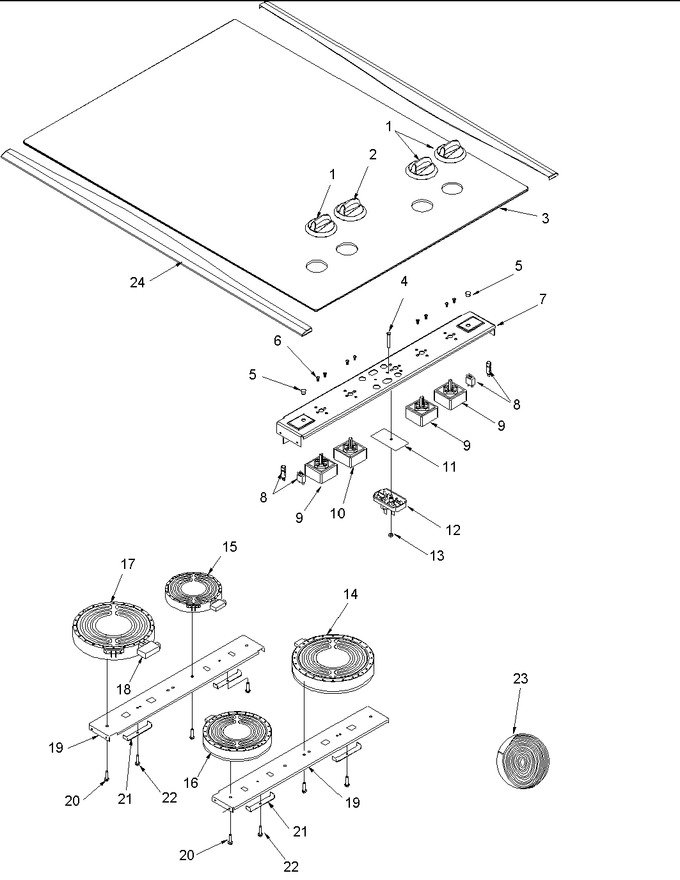

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31926601B | Knob,infinite(black) | 10 |
|
- | ||||
| 2 | 31926603B | Knob,dual Infinite(black) | 10 |
|
- | ||||
| 3 | 74009395 | Top Assembly (blk) | 10 |
|
- | ||||
| 4 | M0202521 | Screw | 10 |
|
- | ||||
| 5 | 31934001 | Lens, Indicator Light | 10 |
|
- | ||||
| 6 | WP488234 | Screw (Replaces: M0234422) | 10 |
|
$ 6.07 | ||||
| 7 | 32049801 | Bracket,control Mtg | 10 |
|
- | ||||
| 8 | 32049701 | Light,indicator | 10 |
|
- | ||||
| 9 | WP74011243 | Switch, Infinite (Replaces: 74008214) | 10 |
|
$ 115.88 | ||||
| 10 | 12002125 | Kit, Dual Infinite Switch | 10 |
|
Immediately | $ 79.23 | |||
| 11 | 0307444 | Insulation, Ind. Light | 10 |
|
- | ||||
| 12 | Y0307442 | Light, Indicator | 10 |
|
- | ||||
| 13 | M0281002 | Nut A | 10 |
|
- | ||||
| 14 | W10823710 | Element, Ribbon 8`` 240v/2000w (Replaces: 32083001) | 10 |
|
Immediately | $ 330.41 | |||
| 15 | W10823699 | Element, Ribbon 7`` 240v/1500w (Replaces: 32082901) | 10 |
|
Immediately | $ 145.67 | |||
| 16 | 32082801 | Element, Ribbon 6`` 240v/1200w | 10 |
|
$ 114.09 | ||||
| 17 | W10823726 | Element, Dual Radiant 6/9`` (Replaces: 77001038) | 10 |
|
$ 308.80 | ||||
| 18 | 0316689 | Limiter-dual | 10 |
|
- | ||||
| 19 | 31911601 | Bracket, Element Mtg. | 10 |
|
- | ||||
| 20 | 31750715 | Screw, Shoulder Ab 6-20 X .825 | 10 |
|
- | ||||
| 21 | 74008213 | Spring, Element | 10 |
|
- | ||||
| 22 | 31750425 | Screw, No.8-18 X 3/8 Pph | 10 |
|
- | ||||
| 23 | 74007878 | Tape, Inch | 10 |
|
- | ||||
| 24 | 77001256 | Trim, Rear (stl-30``) | 10 |
|
- | ||||
| 24 | 77001255 | Trim, Front (stl-30``) | 10 |
|
- | ||||
| NI | 32023601 | Knob, Sealer | 10 |
|
- |
