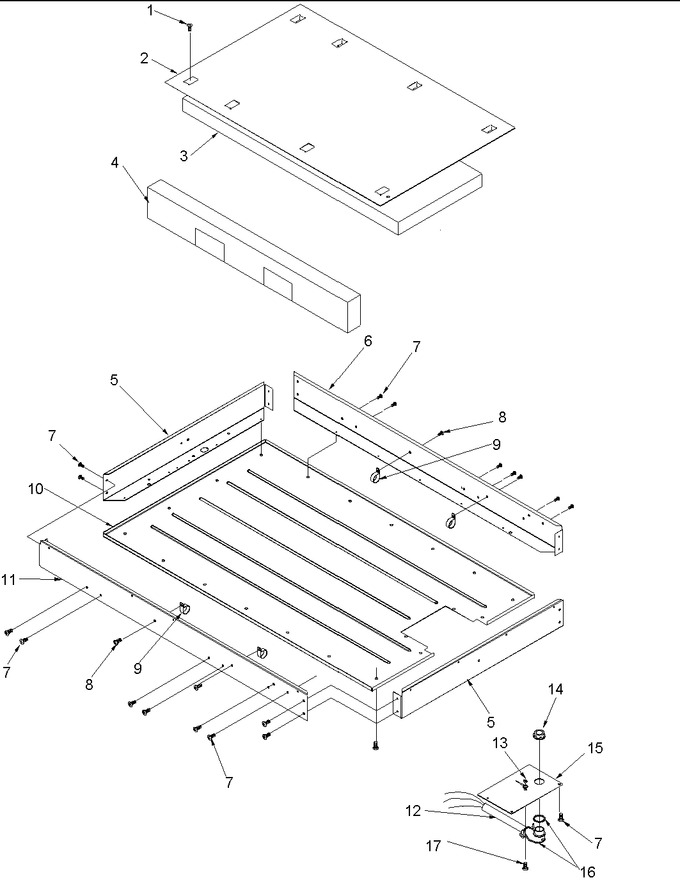

01 - Cooktop Assembly
02 - Heater Box Assembly
03 - Supplemental Information
04 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0307447 | Pop Rivet K | 10 |
|
- | ||||
| 2 | 0316074 | Baffle, Heater Box | 10 |
|
- | ||||
| 3 | 31974401 | Insulation,bot Burner Box | 10 |
|
- | ||||
| 4 | 32060001 | Insulation,burner Box-30`` | 10 |
|
- | ||||
| 5 | Y0316069 | End, Heater Box | 10 |
|
- | ||||
| 6 | Y0316071 | Side, Heater Box | 10 |
|
- | ||||
| 7 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410) | 10 |
|
Immediately | $ 12.65 | |||
| 8 | 31750431 | Screw, No.8-18 X 5/8 Pph | 10 |
|
- | ||||
| 9 | Y0307456 | Clamp, Tube (1/2``) | 10 |
|
- | ||||
| 10 | Y0316649 | Panel, Access | 10 |
|
- | ||||
| 11 | Y0316070 | Side, Heater Box | 10 |
|
- | ||||
| 12 | 77001198 | Harness, Conduit | 10 |
|
- | ||||
| 13 | 31750124 | Hex Nut (nkl) | 10 |
|
- | ||||
| 14 | M0327601 | Bushing, Conduit | 10 |
|
- | ||||
| 15 | Y0307451 | Plate, Conduit | 10 |
|
- | ||||
| 16 | M0321505 | Connector, Conduit | 10 |
|
- | ||||
| 17 | 31750523 | Screw, Grd No.10-32 X 1/2 Panhd | 10 |
|
- | ||||
| NI | WP3388228 | Screw Xxx (Replaces: M0216703) | 10 |
|
$ 6.26 | ||||
| NI | Y0308941 | Seal, Inlet | 10 |
|
- | ||||
| NI | M0272803 | Lock Washer | 10 |
|
- |
