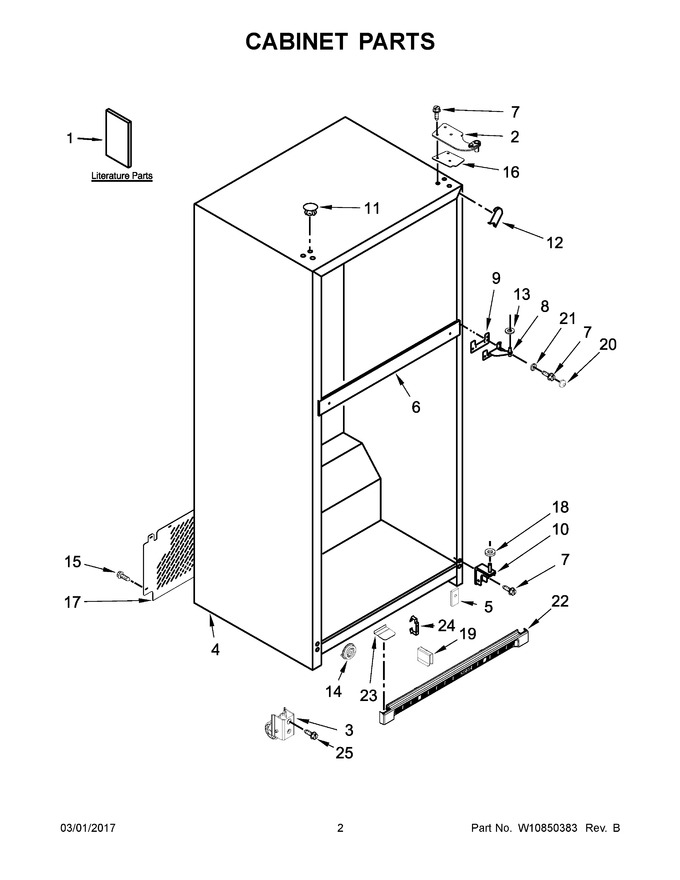

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804649		Tech Sheet		Appelez-nous	-
2	WPW10300065		Assembly, Top Right Hinge   (Replaces: W10300065)				$ 11.95
3	WPW10359256		Roller Assembly (left Hand)   (Replaces: W10359256)			Immediately	$ 46.65
4	N/P		Cabinet (not Serviced)		Appelez-nous	-
5	W10474788		Shim, Front Roller		Appelez-nous	-
6	N/P		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 78.88
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 9.59
10	WP2254473		Hinge, Bottom   (Replaces: 2254473)			Immediately	$ 7.62
11	WPW10520307		Hole Plug (grey)   (Replaces: W10520307)			Immediately	$ 6.47
12	W10851579		Filler, Wrapper (grey)   (Replaces: W10283961)			Immediately	$ 6.47
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 9.79
14	W10331226		Drum, Toe Grille				$ 40.64
15	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.01
16	W10883637		Shim, Top Hinge				$ 13.67
17	W11307290		Cover, Unit   (Replaces: W10609390)		Appelez-nous	-
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 8.89
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 9.88
20	W10849198		Dome Cap (grey)   (Replaces: W10679139)				$ 16.47
21	W10847959		Dome Cap, Washer   (Replaces: W10674773)				$ 9.66
22	W10353944		Grille (grey)				$ 130.86
23	W10381064		Cover, Toe Grille (grey)				$ 70.38
24	2254385		Clip, Grille				$ 76.18
25	3400524		Bolt   (Replaces: W10142287)				$ 11.39
1A	W10834951		Use & Care Guide		Appelez-nous	-
3A	WPW10359255		Roller Assembly (right Hand)   (Replaces: W10359255)			Immediately	$ 86.27

    View Diagram in Separate Window       Print Part List
