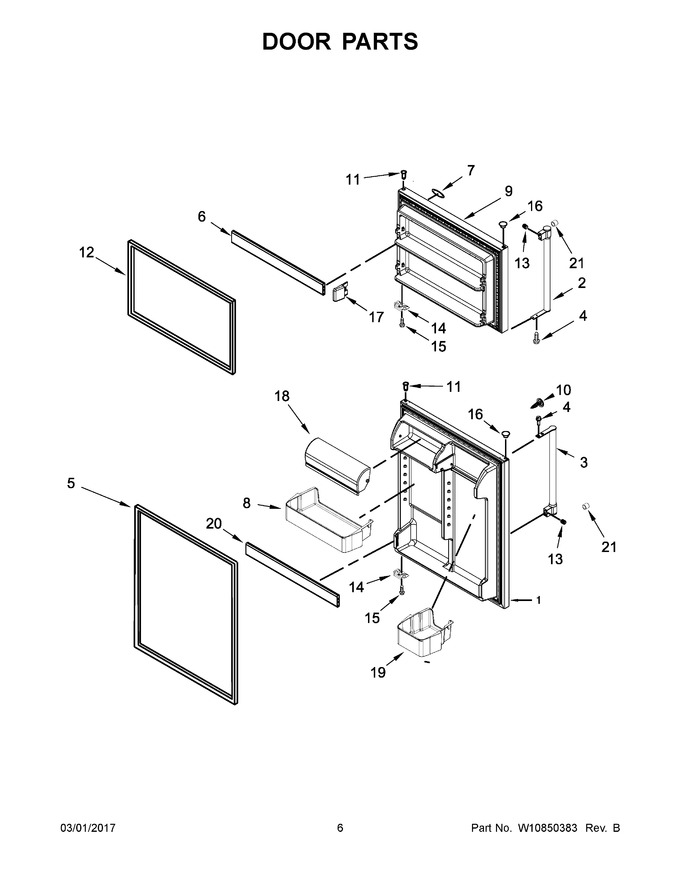

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10818839		Refrigerator Door (includes Illustration 5) (stainless)   (Replaces: W10818839)		Appelez-nous	-
2	W10647957		Handle, Freezer (neptune Frost)				$ 264.41
3	W10647954		Handle, Refrigerator (neptune Frost)				$ 256.16
4	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.23
5	W10249195		Door Gasket, Magnetic (grey)   (Replaces: W10171475)				$ 287.83
6	W10592150		Trim, Door				$ 107.96
7	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 76.37
9	LW10818842		Freezer Door (includes Illustration 12) (stainless)   (Replaces: W10818842)		Appelez-nous	-
10	W10830982		Hole Plug (grey)   (Replaces: W10663739)			Immediately	$ 16.75
11	W11189115		Thimble Top   (Replaces: W10334042)				$ 10.89
12	W10249196		Door Gasket, Magnetic (grey)   (Replaces: W10171479)			Immediately	$ 239.23
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 14.21
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
16	WP2254517		Hole Plug, Hinge Sleeve (grey)   (Replaces: 2254517)			Immediately	$ 20.86
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 47.73
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 29.43
19	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 64.96
20	W11126062		Trim, Door   (Replaces: W10592148)				$ 109.15
21	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 13.81
