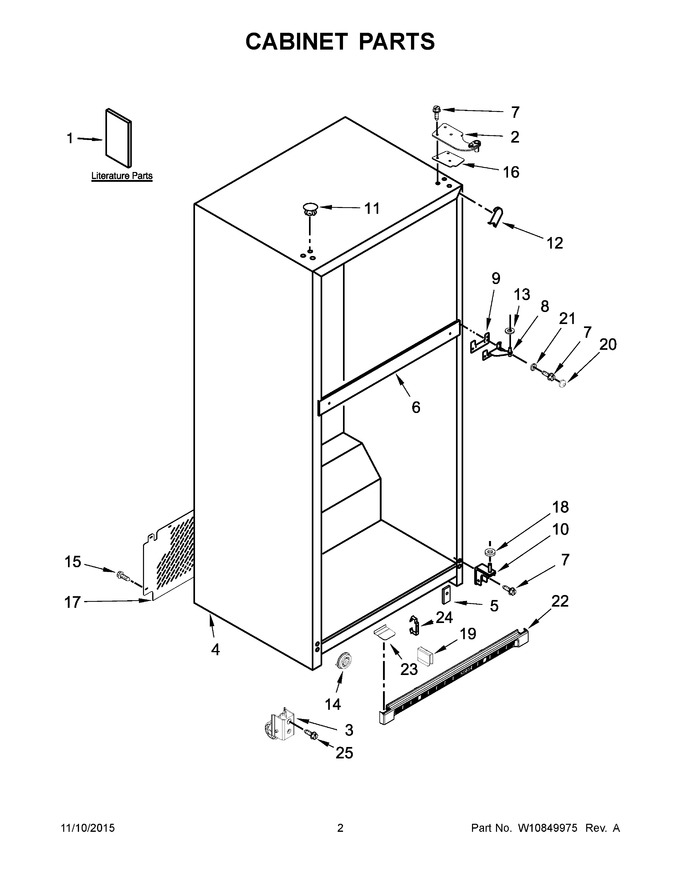

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10804649		Service & Wiring Sheet		Appelez-nous	-
2	W11714879		Assembly, Top Right Hinge   (Replaces: W10300065)				$ 24.95
3	WPW10359256		Roller Assembly (left Hand)   (Replaces: W10359256)			Immediately	$ 54.43
4	N/P		Cabinet (not Serviced)		Appelez-nous	-
5	W10474788		Shim, Front Roller		Appelez-nous	-
6	N/P		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
10	WP2254473		Hinge, Bottom   (Replaces: 2254473)			Immediately	$ 9.28
11	WPW10520304		Hole Plug (white)   (Replaces: W10520304)			Immediately	$ 19.22
12	WPW10283959		Filler, Wrapper (white)   (Replaces: W10283959)				$ 8.21
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
14	W10331226		Drum, Toe Grille				$ 47.42
15	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
16	W10883637		Shim, Top Hinge   (Replaces: W10338247)				$ 15.95
17	W11307290		Cover, Unit   (Replaces: W10609390)		Appelez-nous	-
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 10.74
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 11.53
20	W10846529		Dome Cap (white)   (Replaces: W10674771)			Immediately	$ 19.82
21	W10847959		Dome Cap, Washer   (Replaces: W10674773)				$ 11.27
22	W10326387		Grille (white)				$ 153.68
23	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
24	2254385		Clip, Grille				$ 88.87
25	3400524		Bolt   (Replaces: W10142287)				$ 13.28
1A	W10834951		Use & Care Guide		Appelez-nous	-
3A	WPW10359255		Roller Assembly (right Hand)   (Replaces: W10359255)			Immediately	$ 100.64
