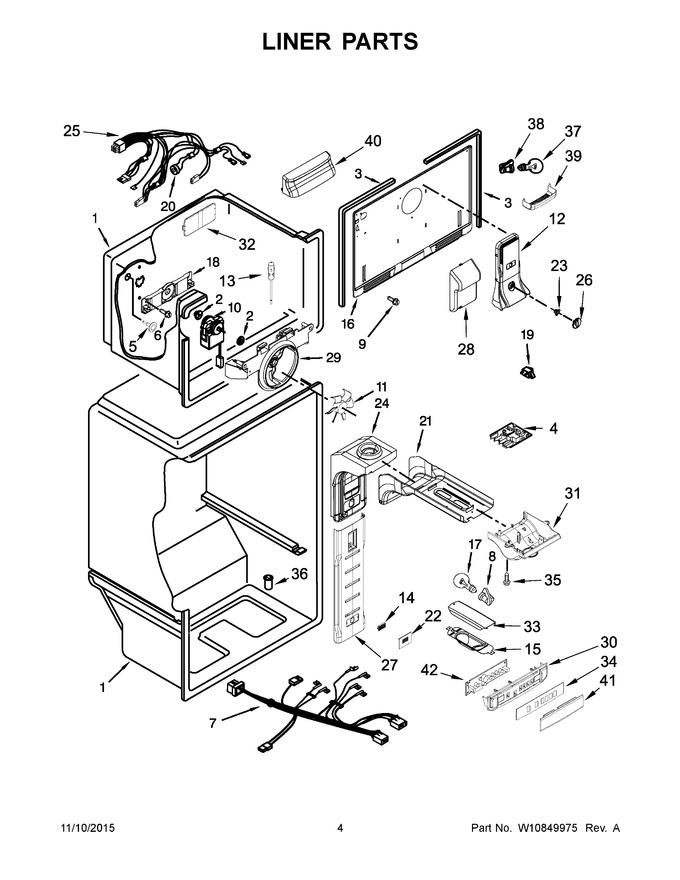

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	WP2264462		Grommet   (Replaces: 2197380)			Immediately	$ 39.57
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254360)				$ 24.10
4	W10802061		Control, User Interface   (Replaces: W10734129)				$ 359.91
5	WP941839		Hole Plug (white)   (Replaces: 941839)				$ 6.89
6	WP488163		Screw   (Replaces: 488208)				$ 6.79
7	W10557787		Wire Assembly, Control Box		Appelez-nous	-
8	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 11.89
9	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 8.86
10	WPW10173141		Fan Motor   (Replaces: W10173141)				$ 273.22
11	WP2163777		Blade, Fan   (Replaces: 2200509)			Immediately	$ 59.54
12	W10654833		Air Tower, Fc		Appelez-nous	-
13	WPW10383615		Thermistor, Freezer Evaporator   (Replaces: W10383615)			Immediately	$ 42.76
14	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 12.91
15	W10300161		Shield, Light			Immediately	$ 82.82
16	W10617507		Cover, Evaporator				$ 187.25
17	W10716219		Bulb, Light		Appelez-nous	-
18	2254454		Bracket, Evaporator Fan Rear			Immediately	$ 64.67
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 33.51
20	N/P		Bi-metal Defrost (not Serviced)		Appelez-nous	-
21	WPW10305175		Cover, Air Diffuser   (Replaces: W10305175)				$ 98.02
22	WPW10330850		Grille, Air Filter Bottom   (Replaces: W10330850)				$ 32.19
23	W10798358		Baffle, Air Manual		Appelez-nous	-
24	WPW10395376		Multiflow Assembly   (Replaces: W10395376)				$ 76.10
25	W10637611		Wire Assembly, Evaporator Fan				$ 90.11
26	W11026417		Knob, Air Control   (Replaces: W10570952)				$ 78.73
27	W10705785		Cover, Air Filter				$ 83.89
28	WPW10339203		Cover, Water Tube   (Replaces: W10339203)				$ 6.47
29	W10850162		Bracket, Fan Motor   (Replaces: W10321162)			Immediately	$ 27.83
30	W10705218		Control, Fascia				$ 246.83
31	W10459450		Control Box		Appelez-nous	-
32	W10336009		Cup, Screw				$ 66.34
33	WPW10348614		Cover, Light   (Replaces: W10348614)				$ 101.11
34	W10704853		Overlay				$ 68.02
35	WP489174		Screw   (Replaces: 489174)				$ 6.26
36	WP2210509		Valve, Release   (Replaces: 2210509)				$ 84.99
37	W10855002		Light Bulb   (Replaces: W10451451)		Appelez-nous	-
38	W11661565		Socket, Light   (Replaces: W10440814)			Immediately	$ 30.70
39	WPW10313918		Lens, Light   (Replaces: W10313918)			Immediately	$ 81.72
40	W10469934		Light Housing, Fc		Appelez-nous	-
41	W10339195		Lens, Fascia				$ 21.53
42	WPW10341559		Control, User Interface   (Replaces: W10341559)				$ 239.89
