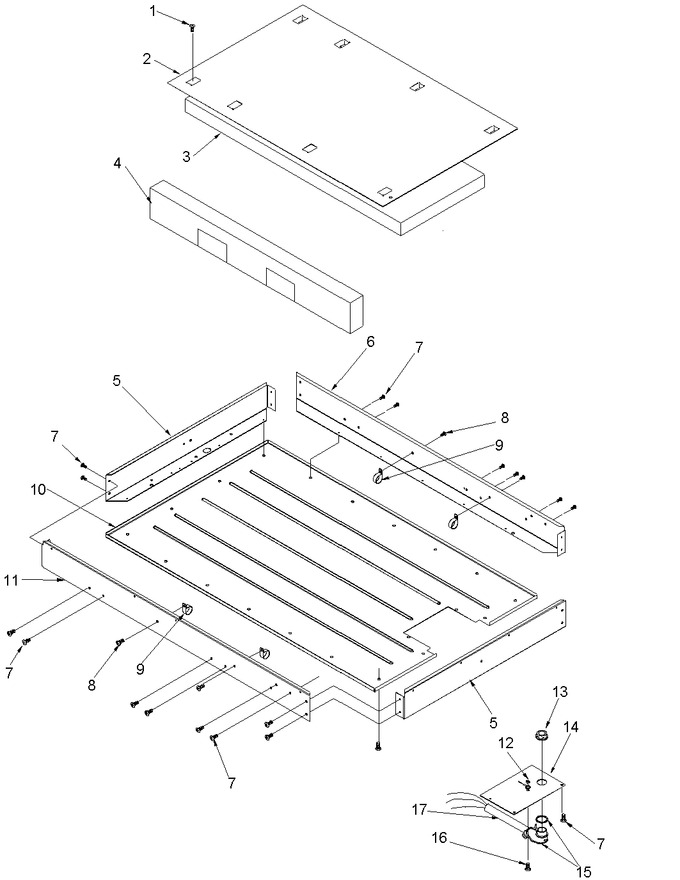

01 - Burner Box


02 - Supplemental Information


03 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0307447		Pop Rivet K	10	Appelez-nous	-
2	31913401		Panel, Access 36``	10	Appelez-nous	-
3	31974402		Insulation,bot Burner Box	10	Appelez-nous	-
4	32014901		Insul,36`` Elec Cktp	10	Appelez-nous	-
5	Y0316069		End, Heater Box	10	Appelez-nous	-
6	31913601		Side Heater Box	10	Appelez-nous	-
7	31750422		Screw, No.8-18 X 1/4 P Trs Hd	10	Appelez-nous	-
8	31750431		Screw, No.8-18 X 5/8 Pph	10	Appelez-nous	-
9	Y0307456		Clamp, Tube (1/2``)	10	Appelez-nous	-
10	31913801		Baffle, Heater Box	10	Appelez-nous	-
11	31913501		Side Heater Box	10	Appelez-nous	-
12	31750124		Hex Nut (nkl)	10	Appelez-nous	-
13	M0327601		Bushing, Conduit	10	Appelez-nous	-
14	Y0307451		Plate, Conduit	10	Appelez-nous	-
15	M0321505		Connector, Conduit	10	Appelez-nous	-
16	31750523		Screw, Grd No.10-32 X 1/2 Panhd	10	Appelez-nous	-
17	31988601		Harness, Conduit	10	Appelez-nous	-
NI	WP3388228		Screw Xxx   (Replaces: M0216703)	10			$ 6.26
