01 - Burner Box


02 - Supplemental Information


03 - Top Assembly

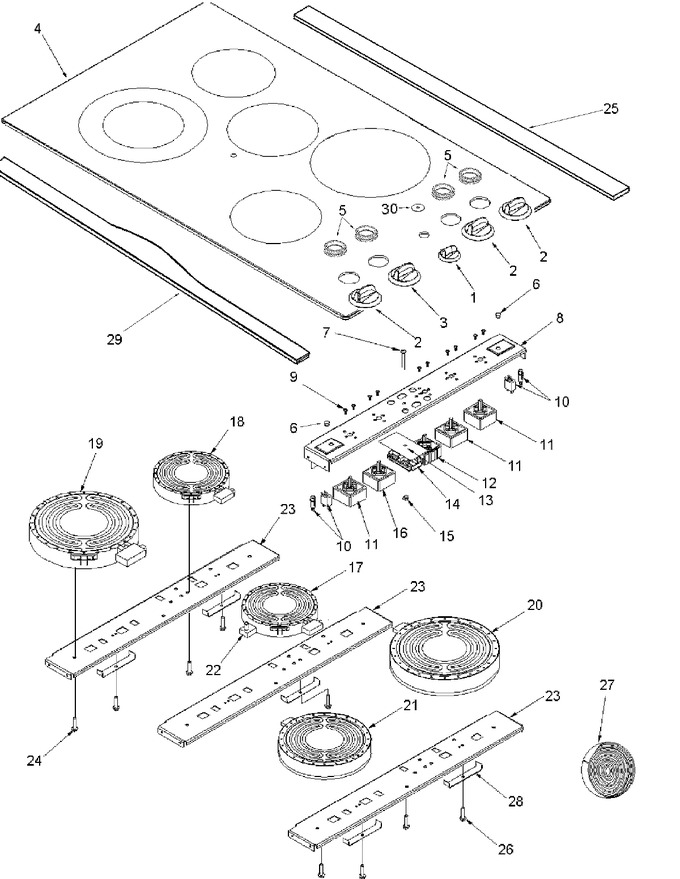

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31918406W		Knob,warm Zone(white)	10	Appelez-nous	-
2	74008232		Knob, Infinite (wht)	10	Appelez-nous	-
3	31926604W		Knob,dual Infinite(white)	10	Appelez-nous	-
4	74009398		Top Assembly (wht)	10	Appelez-nous	-
5	74008211		Knob, Grommet	10	Appelez-nous	-
6	31934001		Lens, Indicator Light	10	Appelez-nous	-
7	M0202521		Screw	10	Appelez-nous	-
8	32049801		Bracket,control Mtg	10	Appelez-nous	-
9	WP488234		Screw   (Replaces: M0234422)	10			$ 6.07
10	32049701		Light,indicator	10	Appelez-nous	-
11	WP74011243		Switch, Infinite   (Replaces: 74008214)	10			$ 115.88
12	74008230		Switch, Inifinite	10			$ 45.18
13	0307444		Insulation, Ind. Light	10	Appelez-nous	-
14	74007880		Light, Indicator	10	Appelez-nous	-
15	74007879		Nut	10	Appelez-nous	-
16	12002125		Kit, Dual Infinite Switch	10		Immediately	$ 79.23
17	74007933		Element, Warming Zone	10			$ 38.41
18	W10823704		Element W/limiter (6``)   (Replaces: 74005476)	10		Immediately	$ 309.01
19	W10823726		Dual Element,ribbon-1000/2500w   (Replaces: 77001064)	10			$ 308.80
20	W10823708		Element (2000w)   (Replaces: 74007839)	10			$ 307.60
21	W10823699		Element, Ribbon 7`` 240v/1500w   (Replaces: 74008218)	10		Immediately	$ 145.67
22	31913001		Light,indicator-hot Surface	10	Appelez-nous	-
23	31911601		Bracket, Element Mtg.	10	Appelez-nous	-
24	31750715		Screw, Shoulder Ab 6-20 X .825	10	Appelez-nous	-
26	31750425		Screw, No.8-18 X 3/8 Pph	10	Appelez-nous	-
27	74007878		Tape, Inch	10	Appelez-nous	-
28	Y0306683		Spring, Element	10	Appelez-nous	-
30	31902601		Cover, Switch Hole	10	Appelez-nous	-
NI	31750321		Screw, No.6-20 X .625 Truss Hd	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
