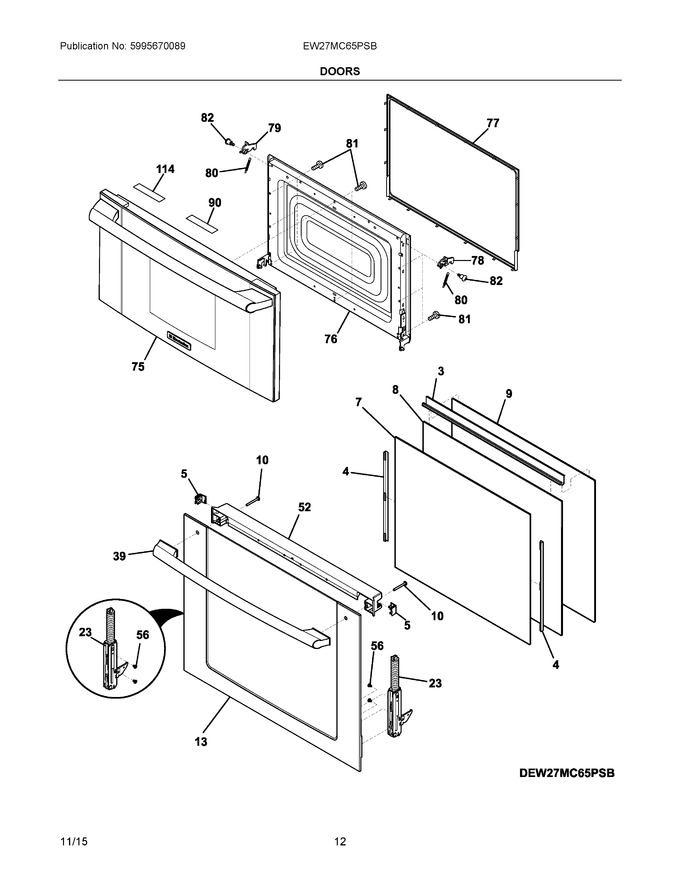

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304490893		Spacer, Door Glass, Top		Appelez-nous	-
4	808983501		Spacer, Door Glass, Silicone, (2)			Immediately	$ 28.96
5	139010800		Cap, Screw Hole, Trim, (2)				$ 16.30
7	139010507		Glass, Thermal, Inner, Hb11 #2		Appelez-nous	-
8	139010506		Glass, Thermal, Inner, Hb11 #1		Appelez-nous	-
9	139010403		Glass, Door, Inner				$ 193.31
10	316439507		Screw, Handle Mtg., 10-24 X 1.77", (2)				$ 21.97
13	5304491422		Door Assembly, Outer, Stainless/black, Lower Oven				$ 1,078.25
23	139010303		Hinge, Door, Maroon, Dual Spring				$ 105.16
39	316380805		Handle, Door, Stainless		Appelez-nous	-
52	5304498537		Trim Assembly, Door, Top		Appelez-nous	-
56	807286001		Screw, 10-32 X 1/4				$ 12.02
75	5304503734		Door Assembly, Complete, Stainless, W/handle-badge		Appelez-nous	-
76	5304471512		Panel, Inner Door				$ 357.92
77	5304470579		Frame, Inner Door, Choke Cover				$ 87.48
78	5304491054		Latch Head, Right Side				$ 54.58
79	5304490142		Latch Head, Left Side			Immediately	$ 58.56
80	5304503735		Spring, Latch Head, (2)				$ 26.54
81	5304451561		Screw, 4 Mm X 8 Mm				$ 16.63
82	5304470583		Screw				$ 13.01
90	5304451534		Label, User Caution, French				$ 3.55
114	5304440346		Label, User Caution, French				$ 34.73
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
