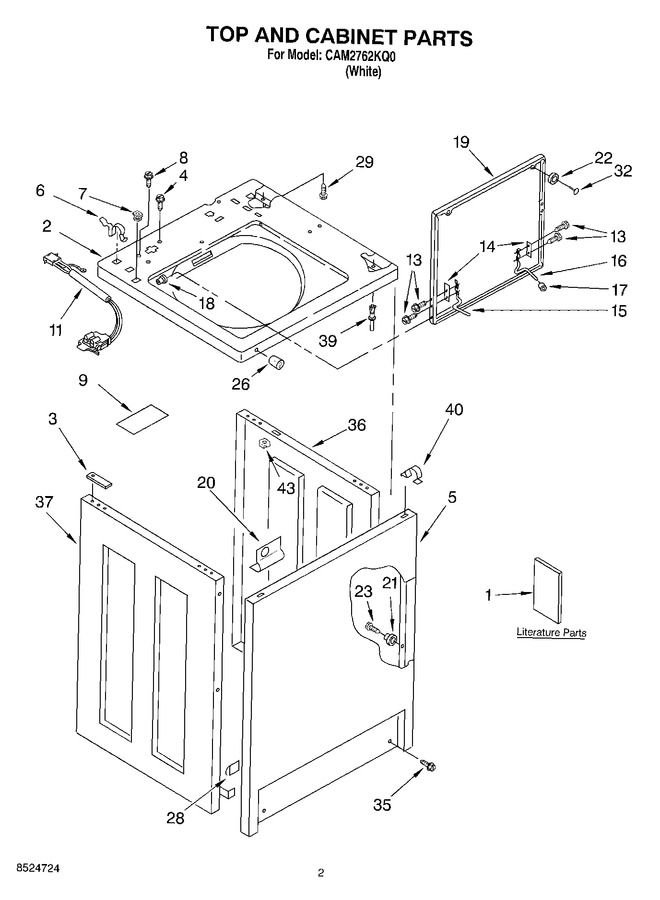

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8315954 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8524724 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT3954757 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8316532 | Literature Parts (instructions, Coin Kit) |
|
- | |||||
| 2 | 8524688 | Top |
|
$ 133.25 | |||||
| 3 | 3353950 | Spacer, Cabinet To Top (4) |
|
$ 6.74 | |||||
| 4 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 5 | WP3358500 | Panel, Front (Replaces: 3358500) |
|
$ 298.75 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 7 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 8 | 3400611 | Screw & Washer, Lid Switch (2) |
|
- | |||||
| 9 | 3953152 | Shield, Pressure Switch |
|
- | |||||
| 11 | WP8054980 | Switch, Lid (Replaces: 8054980) |
|
Immediately | $ 139.29 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP8524784 | Hinge, Lid (l.h.) (Replaces: 8524784) |
|
$ 30.55 | |||||
| 16 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 26.60 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 8316257 | Lid |
|
- | |||||
| 20 | 3353948 | Bracket, Lock |
|
$ 12.34 | |||||
| 20 | 63554 | Rivet |
|
- | |||||
| 21 | 3353812 | Locator (4) |
|
$ 5.51 | |||||
| 22 | 356908 | Bumper, Lid |
|
$ 8.35 | |||||
| 23 | WP9741232 | Screw (4) (Replaces: 718258) |
|
Immediately | $ 4.56 | ||||
| 26 | 387371 | Plug, Lock |
|
$ 11.36 | |||||
| 28 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 29 | 3353993 | Screw (2) |
|
$ 5.86 | |||||
| 32 | WP356907 | Rivet, Plastic (Replaces: 356907) |
|
$ 6.66 | |||||
| 35 | WP3373329 | Screw, Panel Mtg. (2) (Replaces: 3393258) |
|
$ 6.91 | |||||
| 36 | 3353708 | Panel, R. H. |
|
- | |||||
| 37 | 3353714 | Panel, L. H. |
|
- | |||||
| 39 | 3353949 | Pin, Locator (2) |
|
$ 6.23 | |||||
| 40 | WP18776 | Lock (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 43 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 |
