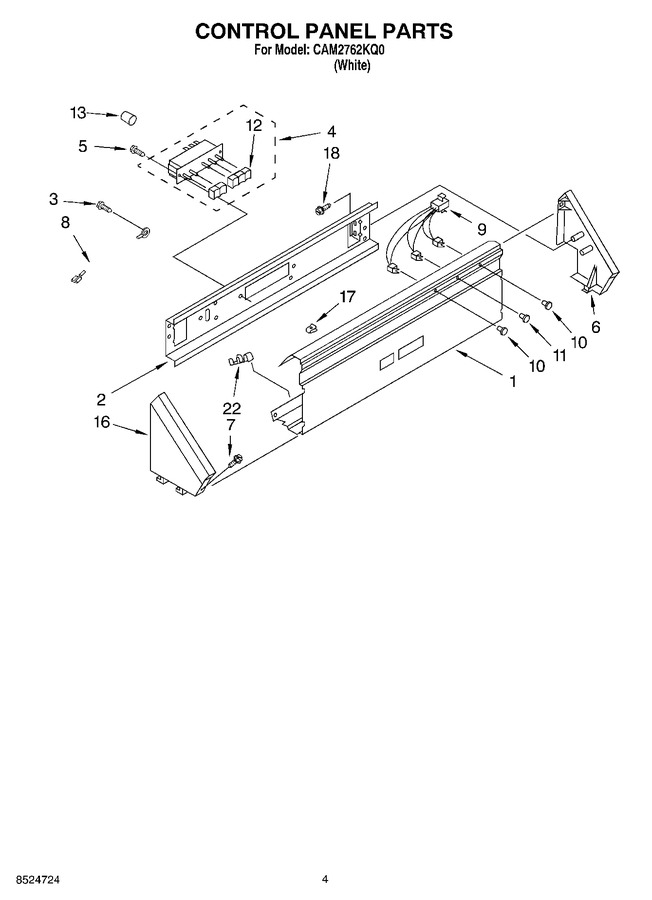

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8316235		Panel, Console		Appelez-nous	-
2	3361029		Bracket, Control				$ 34.04
3	3400073		Screw		Appelez-nous	-
4	WPW10330136		Switch, Cycle Selector (includes Illus. No. 12)   (Replaces: 8316435)				$ 280.09
5	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
6	8316516		End Cap (r.h.)		Appelez-nous	-
7	8281182		Screw, 8-18 X 1.25				$ 5.33
8	3398893		Wire, Ground		Appelez-nous	-
9	W10858647		Lights, Indicator   (Replaces: 3352457)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	WPW10330137		Pushbutton (5)   (Replaces: 8316433)			Immediately	$ 305.60
13	W10491983		Cap, Terminal   (Replaces: 359702)		Appelez-nous	-
16	3949734		End Cap (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WPW10109200		Screw, End Cap To Bracket (4)   (Replaces: 97787)			Immediately	$ 7.20
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
