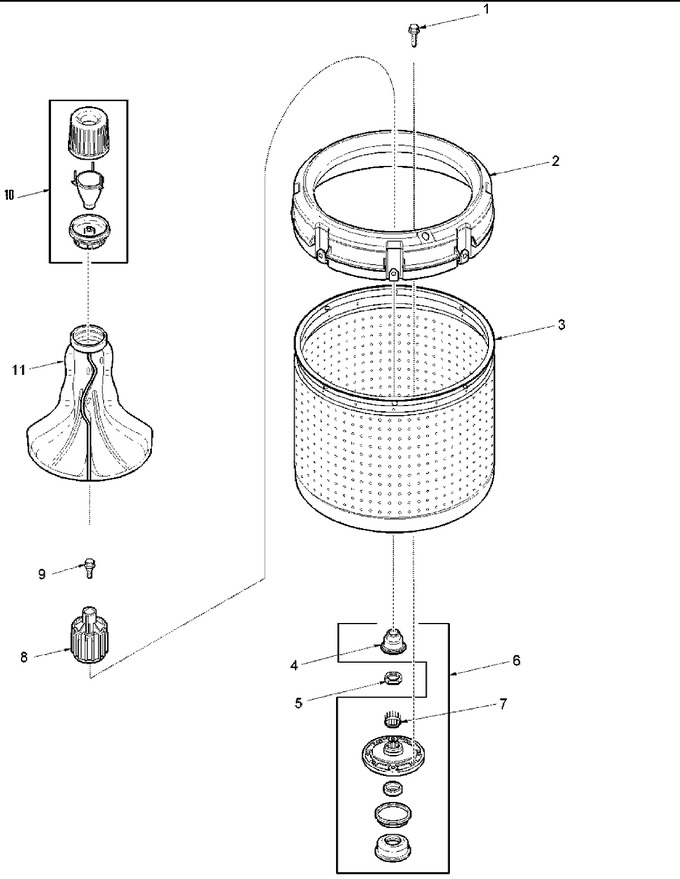

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10116787 | Screw, 5/16-18x7/8 Hx (Replaces: 40063301) |
|
$ 19.26 | |||||
| 2 | 40002901 | Assembly, Balance Ring |
|
- | |||||
| 3 | 40008001 | Filter, Lint |
|
- | |||||
| 3 | 40000801 | Assembly, Wash Tub S.s |
|
- | |||||
| 4 | 40016101 | Seal, Bell Drive |
|
$ 20.76 | |||||
| 5 | 40016301 | Nut, Lock |
|
- | |||||
| 6 | R9900457 | Kit, Hub And Seal |
|
$ 159.68 | |||||
| 7 | 40008301 | Insert, Spline |
|
$ 15.31 | |||||
| 8 | 39508P | Kit, Drive Bell And Seal (Replaces: R9900189) |
|
Immediately | $ 45.90 | ||||
| 9 | 27001017 | O`ring |
|
- | |||||
| 9 | 40065102 | Screw, Shoulder 1/4 |
|
$ 24.54 | |||||
| 11 | 36507 | Agitator, Flex Vane (Replaces: 40000501W) |
|
Immediately | $ 52.19 | ||||
| NI | 40002101W | Assembly, Fabric Softner |
|
- |
