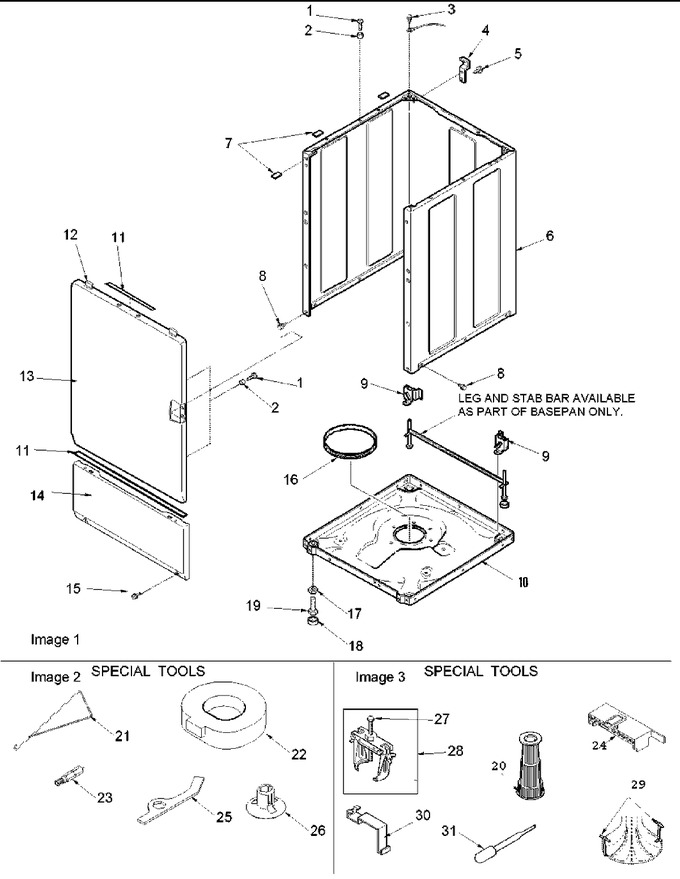

ALW432RAW (BOM: PALW432RAW) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	39733	Screw, Tapping (Replaces: 32671)			$ 6.95
2	56079	Locator, Panel (Replaces: 505187)		Immediately	$ 6.95
3	WP3351614	Screw, 10-24x3/8 Hex (Replaces: 20530)		Immediately	$ 6.26
4	D510136	Hinge, Top (Replaces: 500003)			$ 6.95
5	WP3390631	Screw, 10b-16x1/4 (Replaces: 40064801)			$ 7.04
6	40076402WP	Cabinet, Dryer & Washer (wht)	Appelez-nous	-
7	56128	Pad, Bumper (Replaces: Y56128)			$ 6.95
8	WP27001200	Screw, 12bx1/2no.10 Hx (Replaces: 40038201)			$ 6.91
9	40031501	Bracket, Self Leveling	Appelez-nous	-
10	40031201P	Assy, Base & Level Dome	Appelez-nous	-
11	40083101	Tape, Foam	Appelez-nous	-
12	WP90767	Screw, 8b-18x3/8 Slt (Replaces: 501086)		Immediately	$ 7.04
12	285394	Screw, 10-16x.44 Uns (Replaces: 503661)	Appelez-nous	-
12	WP22001650	Clip, Spring (Replaces: 56080)		Immediately	$ 7.34
12	40034202	Clip, Spring (bottom)	Appelez-nous	-
13	40035401WP	Panel, Front (wht)	Appelez-nous	-
14	40045301WP	Panel, Access (wht)	Appelez-nous	-
15	40034101	Screw, No.12bx1/2	Appelez-nous	-
16	40037401	Ring, Friction			$ 62.08
17	WP210385	Nut, Leg (Replaces: 40038101)			$ 6.26
18	40016001	Foot, Rubber			$ 5.65
19	22003428	Leg, Leveling (Replaces: 40039001)		Immediately	$ 14.41
20	293P4	Seal Tool			$ 43.70
21	321P4	Hook, Spring		Immediately	$ 17.34
22	40068201	Shipping Brace Assembly	Appelez-nous	-
23	282P4	T25 Tamper Resistant Bit			$ 14.60
24	34677	10 Circuit Plug	Appelez-nous	-
25	306P4	Hex Wrench			$ 33.30
26	40047301	Shipping Plug	Appelez-nous	-
27	294P4	Drive Bell Bolt (Replaces: 294P4B)			$ 376.27
28	294P4	Bell Tool			$ 376.27
29	254P4P	Agitator Hooks			$ 108.11
30	273P4	Tub Cover Gasket Tool			$ 68.85
31	283P4	Terminal Extractor Tool			$ 86.72
