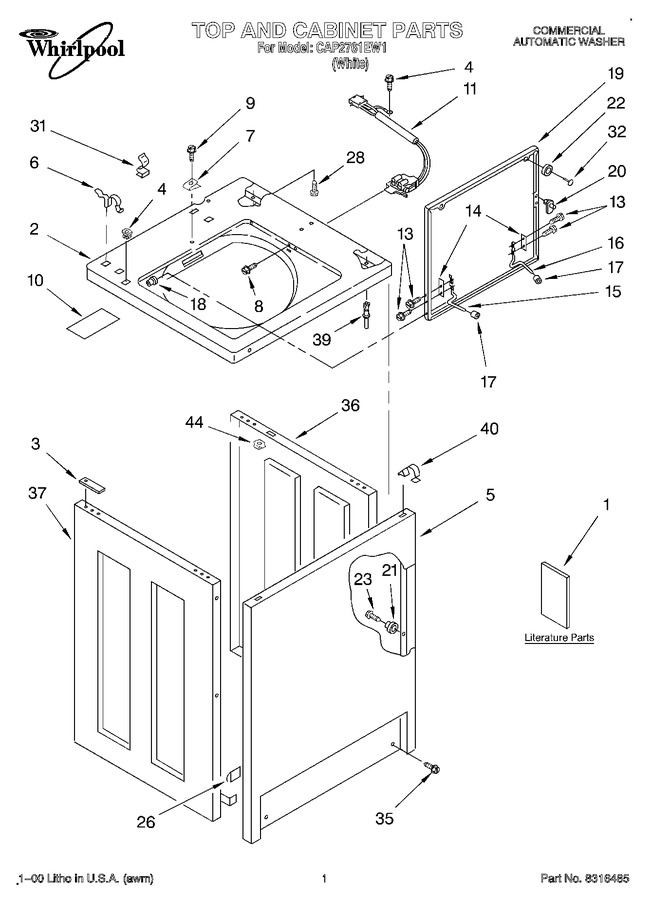

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8316457 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8316485 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT3951748 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8316461 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 3951142 | Top |
|
- | |||||
| 3 | 3353950 | Spacer, Cabinet To Top (4) |
|
$ 6.74 | |||||
| 4 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 5 | WP3358500 | Panel, Front (Replaces: 3358500) |
|
$ 298.75 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.02 | ||||
| 7 | 3355753 | Clip, Ground |
|
- | |||||
| 8 | WP3356311 | Screw & Washer, Lid Switch (2) (Replaces: 3356311) |
|
$ 6.98 | |||||
| 9 | WP355214 | Screw, Ground (Replaces: 3393918) |
|
Immediately | $ 7.26 | ||||
| 10 | 3953152 | Shield, Pressure Switch |
|
- | |||||
| 11 | 285671 | Switch, Lid (Replaces: 3352632) |
|
Immediately | $ 64.13 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 355274) |
|
Immediately | $ 6.47 | ||||
| 14 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 30.09 | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 24.71 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 19 | 3976375 | Lid |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 6.90 | ||||
| 21 | 3353812 | Locator (4) |
|
$ 5.51 | |||||
| 22 | 356908 | Bumper, Lid (2) |
|
$ 8.35 | |||||
| 23 | WP9741232 | Screw (2) (Replaces: 718258) |
|
Immediately | $ 4.56 | ||||
| 26 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 28 | 3353993 | Screw (2) |
|
$ 5.86 | |||||
| 31 | WP90016 | Clip (2) (Replaces: 90016) |
|
$ 10.19 | |||||
| 32 | WP356907 | Rivet, Plastic (Replaces: 356907) |
|
$ 6.66 | |||||
| 35 | WP3373329 | Screw, Panel Mtg. (2) (Replaces: 3393258) |
|
$ 6.91 | |||||
| 36 | 3353708 | Panel, Right Hand |
|
- | |||||
| 37 | 3353714 | Panel, Left Hand |
|
- | |||||
| 39 | 3353949 | Pin, Locator (2) |
|
$ 6.23 | |||||
| 40 | WP18776 | Lock (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 44 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 |
