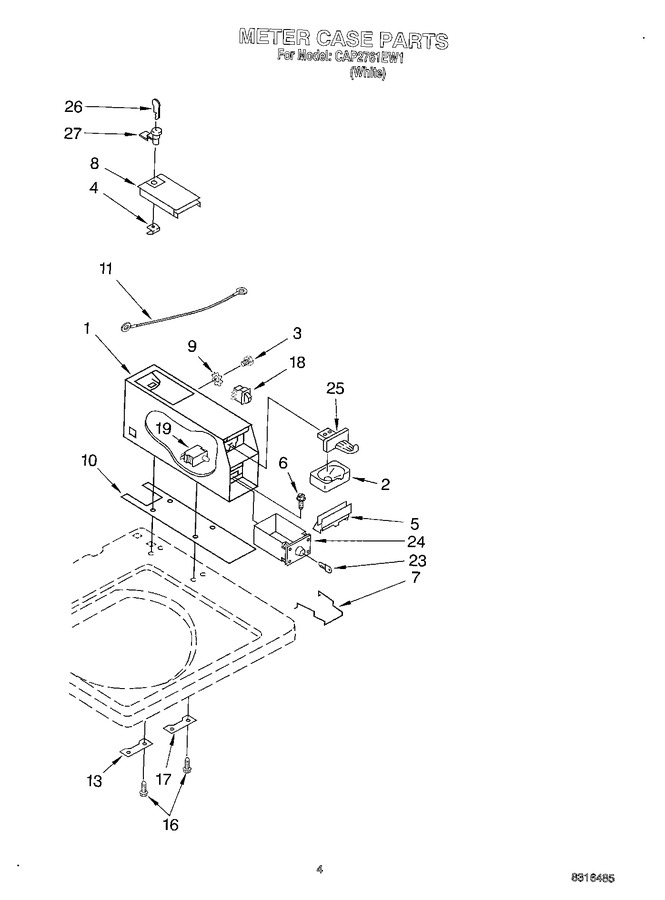

03 - Metercase


04 - Rear Panel


05 - Agitator, Basket And Tub


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Gearcase


10 - Brake And Drive Tube


11 - Water System


12 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10461200		Meter Case   (Replaces: 3951145)			Immediately	$ 344.90
2	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
3	339805		Screw, 10-32 X 3/16				$ 12.05
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
5	3351150		Spacer (money Vault)		Appelez-nous	-
6	3353994		Bolt (5/16 - 18 X 2 1/2)		Appelez-nous	-
6	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 6.41
7	3352295		Guide, Drawer		Appelez-nous	-
8	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
9	W11170663		Washer   (Replaces: 3400900)				$ 3.89
10	WP3954812		Cushion, Case   (Replaces: 3348850)				$ 27.99
11	340025		Wire, Ground		Appelez-nous	-
13	3353813		Plate, Mounting				$ 47.08
16	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
17	3347825		Plate, Mounting		Appelez-nous	-
18	3402784		Switch, Service Diagnostic				$ 8.09
19	3952030		Switch, Vault (large Capacity)		Appelez-nous	-
19	3952029		Switch, Vault (standard Capacity)		Appelez-nous	-
