| 1 |
WPW10359271 |
 |
Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
|
Immediately |
$ 55.99 |
|
|
| 2 |
WP90767 |
 |
Screw (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 3 |
WP681414 |
 |
Screw (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 4 |
W11222846 |
 |
Door, Lint Screen (Replaces: W10685668) |
|
|
Immediately |
$ 183.35 |
|
|
| 5 |
W11727962 |
|
Air Duct Assembly (Replaces: 3392157) |
|
|
|
$ 173.72 |
|
|
| 6 |
WP697813 |
 |
Seal, Outlet Housing (Replaces: 697813) |
|
|
Immediately |
$ 7.17 |
|
|
| 7 |
WP3391906 |
|
Seal, Lint Duct (Replaces: 3391906) |
|
|
|
$ 7.73 |
|
|
| 8 |
W11812294 |
|
Nut, Hex (Replaces: 3934666) |
|
|
|
$ 10.94 |
|
|
| 9 |
8066086 |
|
Plug, Drum Hole |
|
|
|
$ 9.68 |
|
|
| 10 |
279982 |
 |
Baffle, Drum (Replaces: 3389449) |
|
|
|
$ 212.75 |
|
|
| 11 |
WP8563748 |
|
Pipe, Exhaust (Replaces: 8563748) |
|
|
|
$ 11.61 |
|
|
| 12 |
WP488729 |
 |
Screw (Replaces: 3390647) |
|
|
Immediately |
$ 7.01 |
|
|
| 13 |
WP697770 |
 |
Seal, Transition Duct To Lint Duct (Replaces: 3391685) |
|
|
Immediately |
$ 7.09 |
|
|
| 14 |
WP693995 |
 |
Screw (Replaces: 693995) |
|
|
Immediately |
$ 6.47 |
|
|
| 15 |
279457 |
 |
Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
|
Immediately |
$ 7.13 |
|
|
| 16 |
WPW10080190 |
 |
Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
|
Immediately |
$ 7.64 |
|
|
| 17 |
W11299300 |
|
Bulkhead, Rear (Replaces: 3387809) |
|
|
|
$ 315.10 |
|
|
| 18 |
W11236646 |
 |
Washer (Replaces: 3387459) |
|
|
Immediately |
$ 12.63 |
|
|
| 19 |
WPW10359272 |
 |
Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
|
Immediately |
$ 52.63 |
|
|
| 20 |
WPW10512946 |
 |
Washer, Tri Ring (Replaces: W10512946) |
|
|
Immediately |
$ 7.92 |
|
|
| 21 |
WPW10314173 |
 |
Roller, Support (Replaces: W10314171) |
|
|
Immediately |
$ 25.65 |
|
|
| 22 |
WP308685 |
 |
Screw (Replaces: 3357011) |
|
|
Immediately |
$ 7.08 |
|
|
| 23 |
W11129408 |
 |
Assembly, Outlet Housing (Replaces: W10685669) |
|
|
|
$ 47.95 |
|
|
| 24 |
WP488729 |
|
Screw (Replaces: 695240) |
|
|
Immediately |
$ 7.01 |
|
|
| 25 |
W10518375 |
 |
Assembly, Drum |
|
|
|
$ 401.47 |
|
|
| 26 |
W10853898 |
|
Screw (Replaces: W10219342) |
|
|
Immediately |
$ 6.98 |
|
|
| 27 |
W11229602 |
 |
Seal, Drum Front (Replaces: W10495828) |
|
|
Immediately |
$ 53.33 |
|
|
| 28 |
WP3387230 |
 |
Screw (Replaces: 3387230) |
|
|
Immediately |
$ 7.69 |
|
|
| 29 |
WP697557 |
|
Bulkhead, Front (Replaces: 697557) |
|
|
|
$ 187.23 |
|
|
| 30 |
W11086603 |
 |
Grille, Outlet (Replaces: 8299979) |
|
|
Immediately |
$ 31.63 |
|
|
| 31 |
WP697770 |
|
Seal, Plate Cover (Replaces: 697770) |
|
|
Immediately |
$ 7.09 |
|
|
| 32 |
WP3389644 |
 |
Screen, Lint (Replaces: 3389644) |
|
|
Immediately |
$ 82.04 |
|
|
| 33 |
WP8566209 |
 |
Seal, Transition Duct (Replaces: 8566209) |
|
|
|
$ 49.91 |
|
|
| 34 |
WP3387134 |
 |
Thermostat (Replaces: 3387134) |
|
|
Immediately |
$ 32.31 |
|
|
| 35 |
3390935 |
|
Clip, Duct Locator |
|
|
|
$ 11.48 |
|
|
| 36 |
WP3387911 |
 |
Collar, Air Duct (Replaces: 3387910) |
|
|
|
$ 280.55 |
|
|
| 37 |
WP697772 |
 |
Wheel, Blower (Replaces: 697772) |
|
|
Immediately |
$ 53.16 |
|
|
| 38 |
279704 |
 |
Duct, Transition (Replaces: 3389445) |
|
|
|
$ 160.18 |
|
|
| 39 |
279780 |
|
Cover Plate, Blower (Replaces: 697366) |
|
|
|
$ 83.66 |
|
|
| 40 |
WP3394986 |
 |
Spring, Lint Screen Door (Replaces: 3394986) |
|
|
|
$ 76.13 |
|
|
| 41 |
W11568973 |
|
Fixed, Thermostat (205~f) (Replaces: 3388697) |
|
|
|
$ 15.90 |
|
|
| 42 |
WP3392519 |
 |
Fuse, Thermal (91c) (Replaces: 3392519) |
|
|
Immediately |
$ 22.46 |
|
|
| 43 |
W11712577 |
 |
Clip, Strain Relief (Replaces: 694415) |
|
|
Immediately |
$ 6.66 |
|
|
| 44 |
W10888146 |
 |
Housing, Blower (Replaces: 8544362) |
|
|
|
$ 91.53 |
|
|
| 45 |
279700 |
 |
Lint Duct Assembly (Replaces: 3388909) |
|
|
|
$ 163.06 |
|
|
| 46 |
W10118337 |
|
Bracket, Bulkhead Mounting (Replaces: 8571651) |
|
Appelez-nous
|
- |
|
|
|

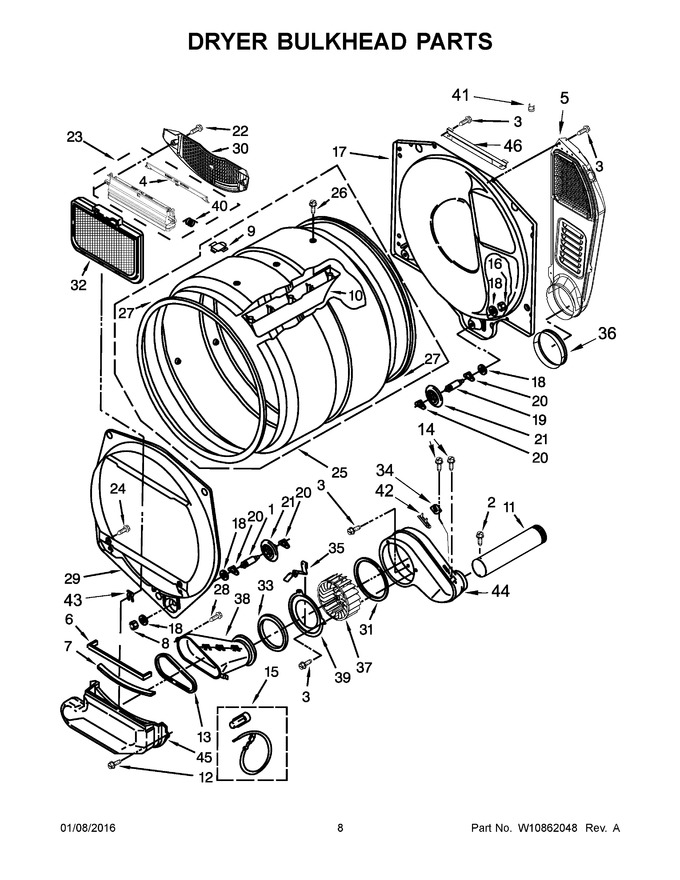

View Diagram in Separate Window
