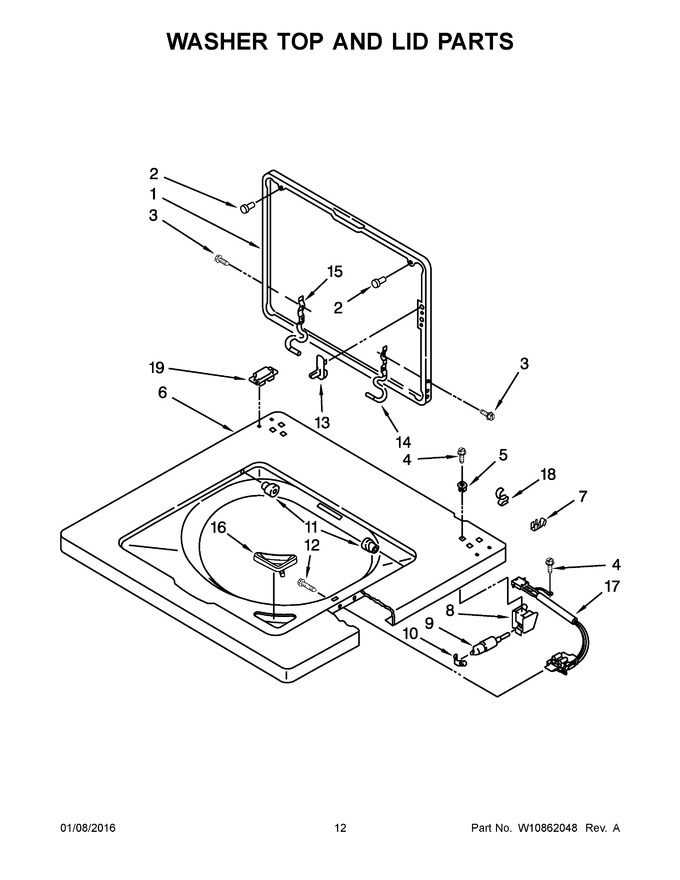

07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10173243		Lid		Appelez-nous	-
2	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.14
3	WPW10119828		Screw   (Replaces: W10119872)			Immediately	$ 6.47
4	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
5	WP692400		Screw Grommet   (Replaces: 692400)			Immediately	$ 6.88
6	3349817		Top, Console			Immediately	$ 312.27
7	W10113937		Clip, Grounding				$ 9.75
8	3354020		Bracket, Mounting				$ 8.57
9	WP3350152		Retainer, Lid Assembly   (Replaces: 3350152)				$ 40.23
10	3350828		Clip, Cylinder Retainer				$ 57.81
11	WP21258		Bearing, Lid Hinge   (Replaces: 21258)			Immediately	$ 6.87
12	WP3356311		Screw And Washer   (Replaces: 3356311)				$ 6.98
13	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
14	3350101		Hinge (rh)				$ 30.10
15	3350102		Hinge (lh)				$ 30.83
16	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 10.88
17	WP3355458		Switch, Lid   (Replaces: 3355458)			Immediately	$ 66.38
18	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
19	W11116924		Locator, Top   (Replaces: W10134768)				$ 19.50
