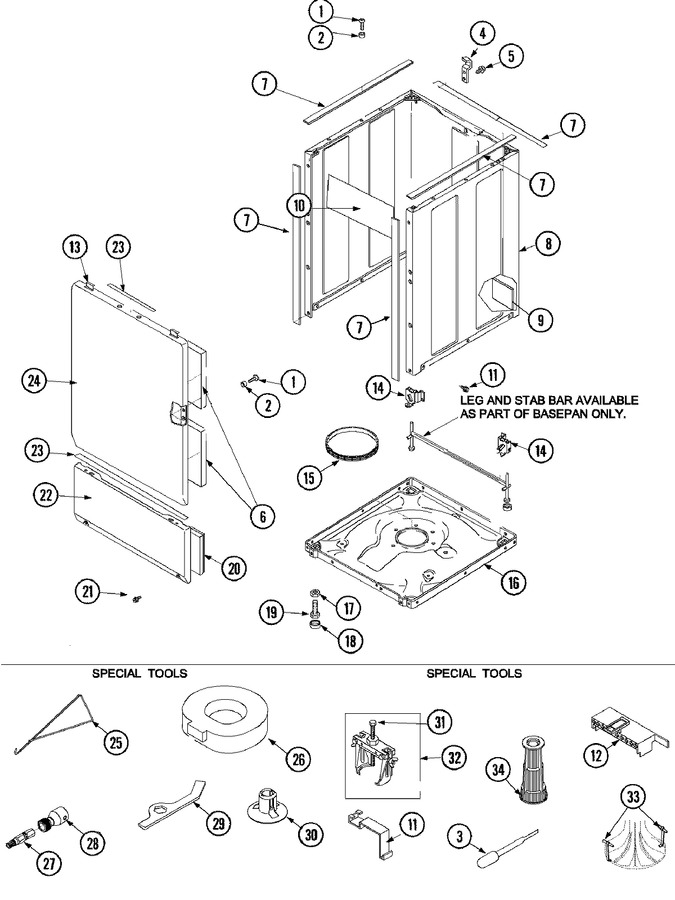

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 39733 | Screw, Tapping (Replaces: 32671) | 10 |
|
$ 6.95 | ||||
| 2 | 56079 | Locator, Panel (Replaces: 505187) | 10 |
|
Immediately | $ 6.95 | |||
| 3 | 283P4 | Terminal Extractor Tool | 10 |
|
$ 86.72 | ||||
| 4 | D510136 | Hinge, Top (Replaces: 500003) | 10 |
|
$ 6.95 | ||||
| 5 | WP3390631 | Screw, 10b-16x1/4 (Replaces: 40064801) | 10 |
|
$ 7.04 | ||||
| 8 | 40076402CP | Cabinet, Dryer & Washer (bsq) | 10 |
|
- | ||||
| 11 | 273P4 | Tub Cover Gasket Tool | 10 |
|
$ 68.85 | ||||
| 12 | 34677 | 10 Circuit Plug | 10 |
|
- | ||||
| 13 | WP22001650 | Clip, Spring (Replaces: 56080) | 10 |
|
Immediately | $ 7.34 | |||
| 14 | 40031501 | Bracket, Self Leveling | 10 |
|
- | ||||
| 15 | 40037401 | Ring, Friction | 10 |
|
$ 62.08 | ||||
| 16 | 40031201 | Assy, Base & Level Dome | 10 |
|
- | ||||
| 17 | WP210385 | Nut, Leg (Replaces: 40038101) | 10 |
|
$ 6.26 | ||||
| 18 | 40016001 | Foot, Rubber | 10 |
|
$ 5.65 | ||||
| 19 | 22003428 | Leg, Leveling (Replaces: 40039001) | 10 |
|
Immediately | $ 14.41 | |||
| 21 | 40034101 | Screw, No.12bx1/2 | 10 |
|
- | ||||
| 22 | 40045301CP | Panel, Access (bsq) | 10 |
|
- | ||||
| 24 | 40035401CP | Panel, Front (bsq) | 10 |
|
- | ||||
| 25 | 321P4 | Hook, Spring (Replaces: 289P4) | 10 |
|
Immediately | $ 17.34 | |||
| 26 | 40068201 | Shipping Brace Assembly | 10 |
|
- | ||||
| 27 | 282P4 | T25 Tamper Resistant Bit | 10 |
|
$ 14.60 | ||||
| 28 | 24161 | Torx Bit Holder | 10 |
|
- | ||||
| 29 | 306P4 | Hex Wrench | 10 |
|
$ 33.30 | ||||
| 30 | 40047301 | Shipping Plug | 10 |
|
- | ||||
| 31 | 294P4 | Drive Bell Bolt (Replaces: 294P4B) | 10 |
|
$ 376.27 | ||||
| 32 | 294P4 | Bell Tool | 10 |
|
$ 376.27 | ||||
| 33 | 254P4P | Agitator Hooks | 10 |
|
$ 108.11 | ||||
| 34 | 293P4 | Seal Tool | 10 |
|
$ 43.70 |
