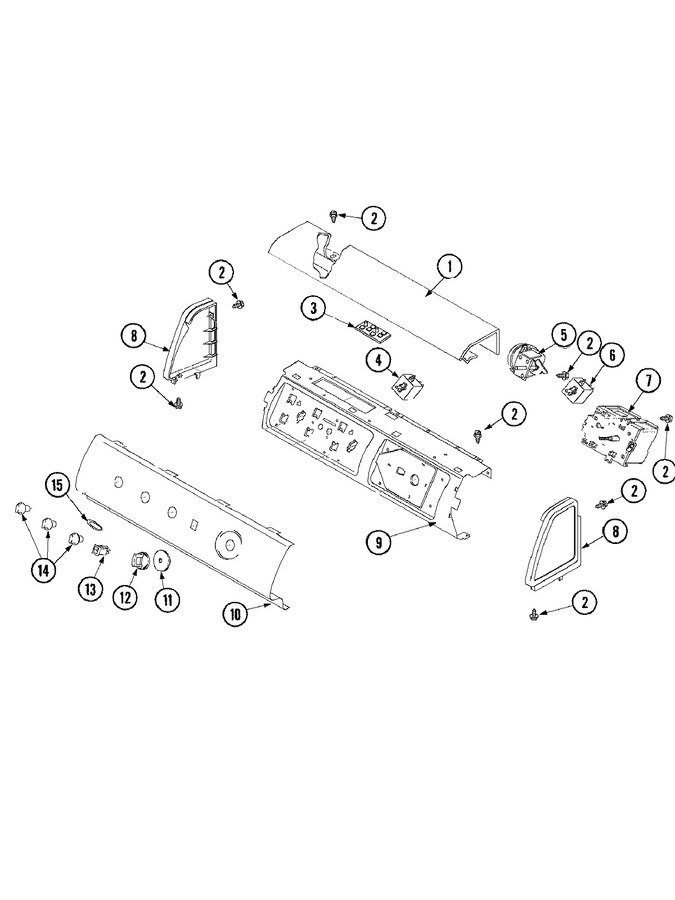

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503674C		Cover, Top (bsq)	10	Appelez-nous	-
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04
3	40131001		Board, Atc 3 Point	10	Appelez-nous	-
4	40131101		Switch,temp 6 Position	10	Appelez-nous	-
5	40114202		Switch, Variable Pressure	10	Appelez-nous	-
6	40039501		Switch, Speed	10	Appelez-nous	-
7	40131201		Timer, Mallory Energy	10	Appelez-nous	-
8	40012701C		Endcap (rt-bsq)	10	Appelez-nous	-
8	40012702C		Endcap (lt-bsq)	10	Appelez-nous	-
9	40039609		Panel,support Control	10	Appelez-nous	-
10	40135301C		Panel,graphic(bisque)	10	Appelez-nous	-
11	40013701C		Dial,timer Knob(bisque)	10	Appelez-nous	-
12	40014001C		Assy, Timer Knob (bsq)	10	Appelez-nous	-
13	38424L		Switch, Rocker (bsq)	10			$ 2.74
14	40013401C		Assy, Selector Knob (bsq)`	10	Appelez-nous	-
15	40083301		Medallion	10	Appelez-nous	-
NI	27001142		Cord, Power (lead-in)	10			$ 57.14

    View Diagram in Separate Window       Print Part List
