SELECT A DIAGRAM

01 - Agitator, Drive Bell, Washtub And Hub


02 - Base, Cabinet, Front And Special Tools


03 - Bearings, Brake, And Transmission


04 - Cabinet Top, Door, And Door Switch


05 - Control Panels


06 - Miscellaeous Information


07 - Mixing Valve And Hoses


08 - Motor, Belt, Pump, And Idler Assy


09 - Outer Tub And Pressure Tube

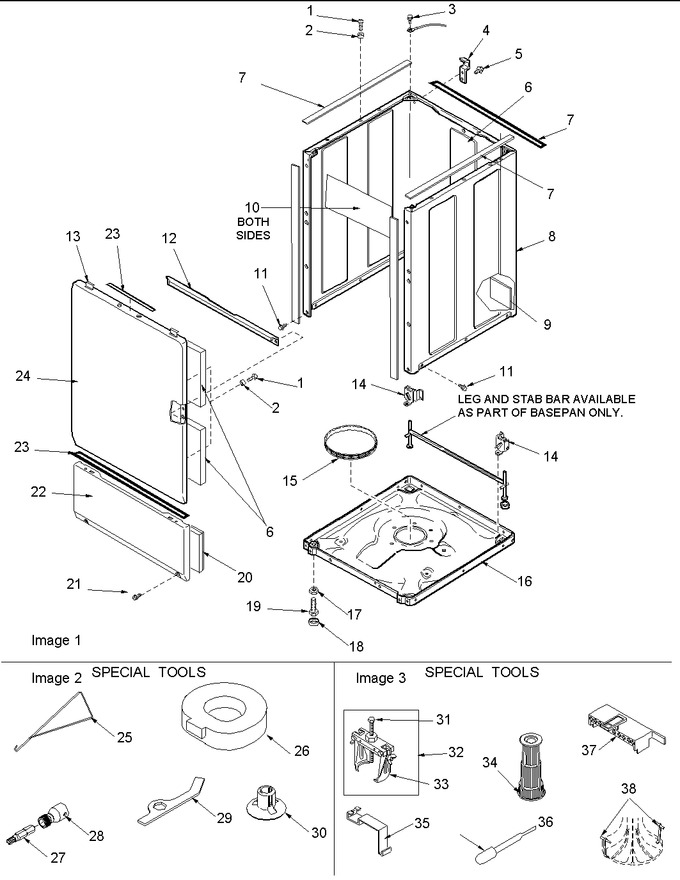

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	D510136		Hinge, Top   (Replaces: 500003)				$ 6.95
5	WP3390631		Screw, 10b-16x1/4   (Replaces: 40064801)				$ 7.04
6	40106401		Foil,6`` X 20`` X 5p5		Appelez-nous	-
6	40106101		Foam,6`` X 13`` X 1``		Appelez-nous	-
7	685366		Tape,foam		Appelez-nous	-
8	40076402C		Cabinet, Dryer (bsq)		Appelez-nous	-
9	40106301		Foam,5`` X 5`` X 1/2``		Appelez-nous	-
12	56486		Brace, Top		Appelez-nous	-
13	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
14	40031501		Bracket, Self Leveling		Appelez-nous	-
15	40037401		Ring, Friction				$ 62.08
16	40031201		Assy, Base & Level Dome		Appelez-nous	-
17	WP210385		Nut, Leg   (Replaces: 40038101)				$ 6.26
18	40016001		Foot, Rubber				$ 5.65
19	22003428		Leg, Leveling   (Replaces: 40039001)			Immediately	$ 14.41
20	40106201		Foam,8`` X 23`` X 1/2``		Appelez-nous	-
21	40034101		Screw, No.12bx1/2		Appelez-nous	-
22	40045301C		Panel,access Bsq		Appelez-nous	-
23	40083101		Tape, Foam		Appelez-nous	-
24	40035401C		Panel,front Washer		Appelez-nous	-
25	321P4		Hook, Spring   (Replaces: 289P4)			Immediately	$ 17.34
26	40068201		Shipping Brace Assembly		Appelez-nous	-
27	282P4		T25 Tamper Resistant Bit				$ 14.60
28	24161		Torx Bit Holder		Appelez-nous	-
29	306P4		Hex Wrench				$ 33.30
30	40047301		Shipping Plug		Appelez-nous	-
31	294P4		Drive Bell Bolt   (Replaces: 294P4B)				$ 376.27
32	294P4		Bell Tool				$ 376.27
33	294P5A		Drive Bell Arms		Appelez-nous	-
34	293P4		Seal Tool				$ 43.70
35	273P4		Tub Cover Gasket Tool				$ 68.85
36	283P4		Terminal Extractor Tool				$ 86.72
37	34677		10 Circuit Plug		Appelez-nous	-
38	254P4P		Agitator Hooks				$ 108.11
NI	40106001		Foam,4`` X 22`` X 1/2``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
