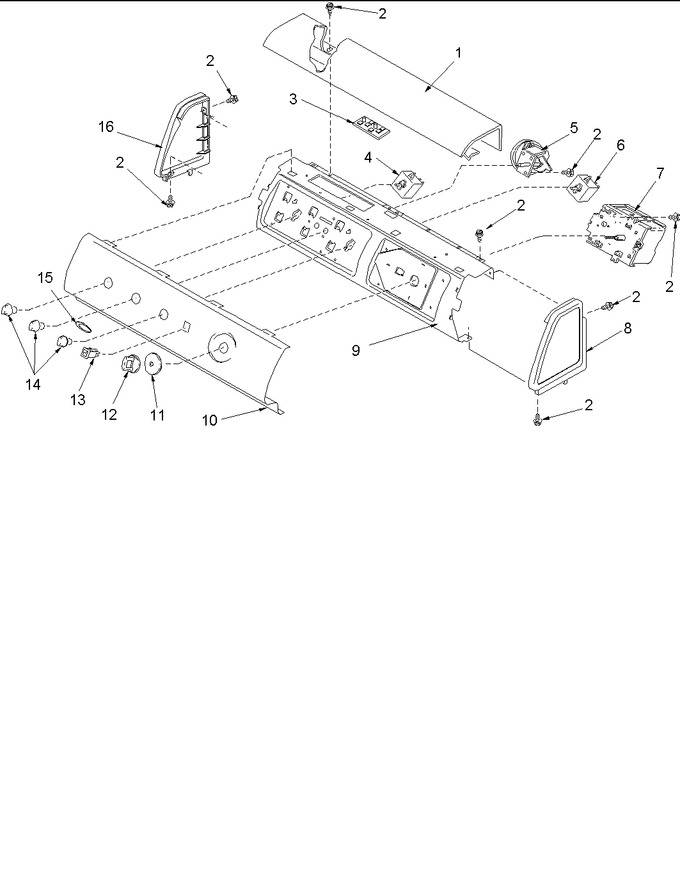

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 503674C | Cover, Top (bsq) |
|
- | |||||
| 3 | 40131001 | Board, Atc 3 Point |
|
- | |||||
| 4 | 40131101 | Switch,temp 6 Position |
|
- | |||||
| 5 | 40114202 | Switch, Variable Pressure |
|
- | |||||
| 6 | 40039501 | Switch, Speed |
|
- | |||||
| 7 | 40131201 | Timer, Mallory Energy |
|
- | |||||
| 8 | 40012701C | Endcap (rt-bsq) |
|
- | |||||
| 9 | 40039609 | Panel,support Control |
|
- | |||||
| 10 | 40135301C | Panel,graphic(bisque) |
|
- | |||||
| 11 | 40013701C | Dial,timer Knob(bisque) |
|
- | |||||
| 12 | 40014001C | Assy, Timer Knob (bsq) |
|
- | |||||
| 13 | 38424L | Switch, Rocker (bsq) |
|
$ 2.74 | |||||
| 14 | 40013401C | Assy, Selector Knob (bsq)` |
|
- | |||||
| 15 | 40083301 | Medallion |
|
- | |||||
| 16 | 40012702C | Endcap (lt-bsq) |
|
- | |||||
| NI | 40131301 | Assy, Hood Wire Harness |
|
- | |||||
| NI | 40100102 | Assy, Wire Harness Base |
|
- |
