SELECT A DIAGRAM

01 - Cover Sheet

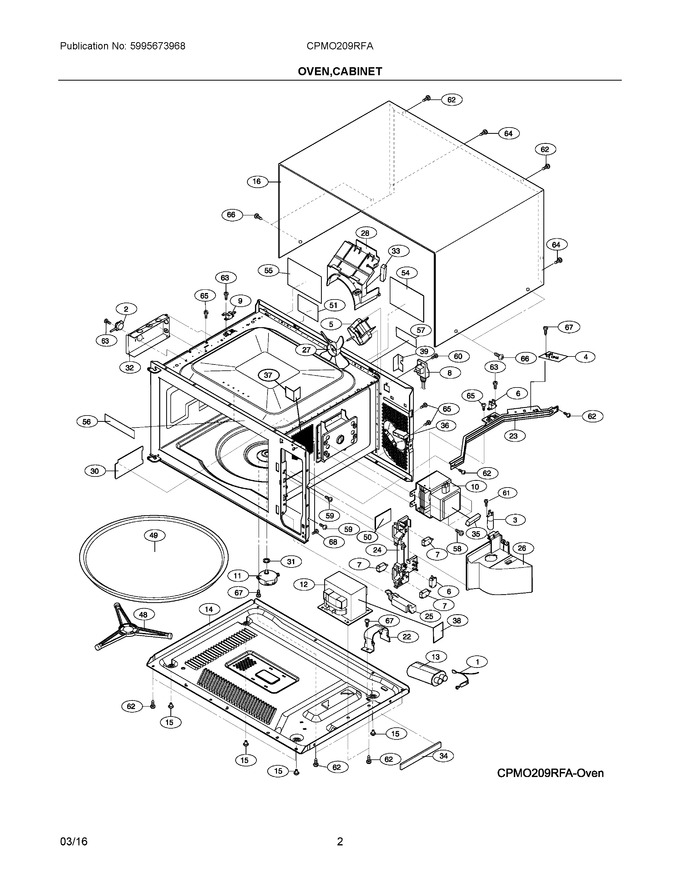

02 - Oven,cabinet


03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304493150		Rectifier Assembly, Hv, W/diode				$ 26.94
2	5304440785		Sensor, Humidity, Cook Control				$ 56.18
3	5304500304		Lamp Assy, With Socket   (Replaces: 5304440779)				$ 63.79
4	5304493151		Filter, Noise, Electronic				$ 54.76
5	5304493152		Motor, Cooling Fan				$ 87.43
6	5304468224		Switch Kit, Monitor, With Ct Fuse   (Replaces: 5304440027)			Immediately	$ 83.14
7	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
8	5304440784		Power Cord, Electric				$ 120.49
9	5304440780		Fuse, Cavity Temp, 20 Amp, 250 V				$ 85.76
10	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
11	5304440021		Motor, Turntable				$ 82.64
12	5304473321		Transformer, Power				$ 253.64
13	5304487566		Capacitor, High Voltage			Immediately	$ 122.62
14	5304478938		Base, Unit Chassis				$ 147.47
15	5304478939		Foot, Cabinet Support				$ 19.06
16	5304478940		Cabinet, Outer Casing, Black				$ 320.30
22	5304478941		Retainer, Capacitor Strap		Appelez-nous	-
23	5304478942		Bracket, Chassis Support		Appelez-nous	-
24	5304503439		Latch Hook			Immediately	$ 60.62
25	5304485407		Lever, Door Release   (Replaces: 5304464899)				$ 63.36
26	5304478956		Duct, Magnetron		Appelez-nous	-
27	5304493155		Fan Blade, Cooling Fan				$ 16.30
28	5304493156		Duct, Cooling Fan		Appelez-nous	-
30	5304478947		Cover, Waveguide		Appelez-nous	-
31	5304467718		Bushing, Motor Shaft, Turntable				$ 19.14
32	5304478948		Duct, Humidity Sensor		Appelez-nous	-
33	5304478949		Cushion, Magnetron Pad		Appelez-nous	-
34	5304493206		Cushion, Base Plate		Appelez-nous	-
35	5304493207		Cushion, Magnetron Pad		Appelez-nous	-
36	5304493208		Cushion, Fan Motor		Appelez-nous	-
37	5304493209		Cushion, Cavity, Control Panel		Appelez-nous	-
38	5304505543		Cushion, Transformer Pad		Appelez-nous	-
39	5304505544		Bracket, Angle, Power Cord		Appelez-nous	-
48	5304467717		Support Assy, Turntable, Roller				$ 122.18
49	5304529482		Tray, Turntable, Glass   (Replaces: 5304440868)				$ 108.44
50	5304468227		Label, Caution-monitor		Appelez-nous	-
51	5304453941		Label, Caution, Ul Screw		Appelez-nous	-
54	5304478953		Label, Height Caution		Appelez-nous	-
55	5304468230		Label, Hwc Caution		Appelez-nous	-
56	5304503484		Label, Menu		Appelez-nous	-
57	5304467770		Label, Caution-dhhs		Appelez-nous	-
58	5304467780		Screw, 4 Mm X 8 Mm, Tap Tight				$ 13.46
59	5303319641		Screw, (2)				$ 12.76
60	5304462315		Screw, 4 Mm X 12 Mm, Ground		Appelez-nous	-
61	5304474833		Screw, 4 Mm X 10 Mm, White		Appelez-nous	-
62	5304502863		Screw, 4 Mm X 8 Mm, Silver   (Replaces: 5304451552)				$ 10.85
63	5304505545		Screw, 3mm X 6mm		Appelez-nous	-
64	5304440873		Screw, Torx, Tamper Proof				$ 11.34
65	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
66	5304467777		Screw, 4 Mm X 8 Mm, Black				$ 16.30
67	5304451550		Screw, 4 Mm X 8 Mm		Appelez-nous	-
68	5304505546		Screw, 4mm X 10mm		Appelez-nous	-
