SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

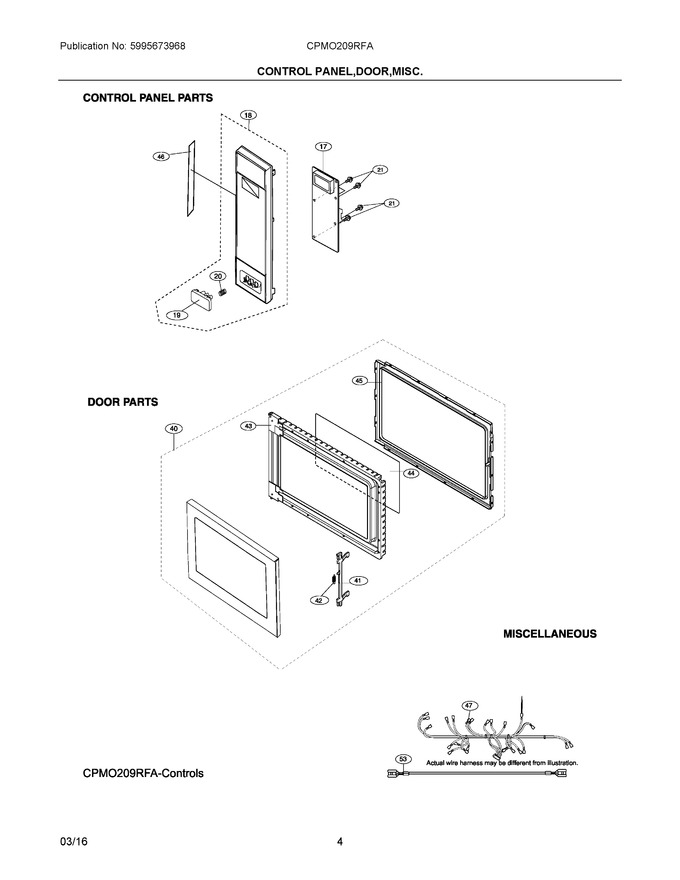

03 - Control Panel,door,misc


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304503437		Control Board, Printed Circuit				$ 380.60
18	5304503438		Control Panel Assy, W/touch Pad				$ 379.29
19	5304462915		Push Button, Door, Stainless				$ 99.77
20	5304440831		Spring, Door Button				$ 20.29
21	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
40	5304503440		Door Assy, Complete, Stainless				$ 402.57
41	5304441893		Latch, Door			Immediately	$ 48.91
42	5304440316		Spring, Door Latch			Immediately	$ 61.00
43	5304440857		Panel, Inner Door, Black				$ 192.29
44	5304440860		Seal, Door, Film				$ 63.09
45	5304440861		Choke Cover, Inner Door				$ 73.02
46	5304468232		Label, User Caution		Appelez-nous	-
47	5304478957		Wiring Harness, Main				$ 108.68
53	5304493157		Wire, High Voltage, B		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
