01 - Cover Sheet

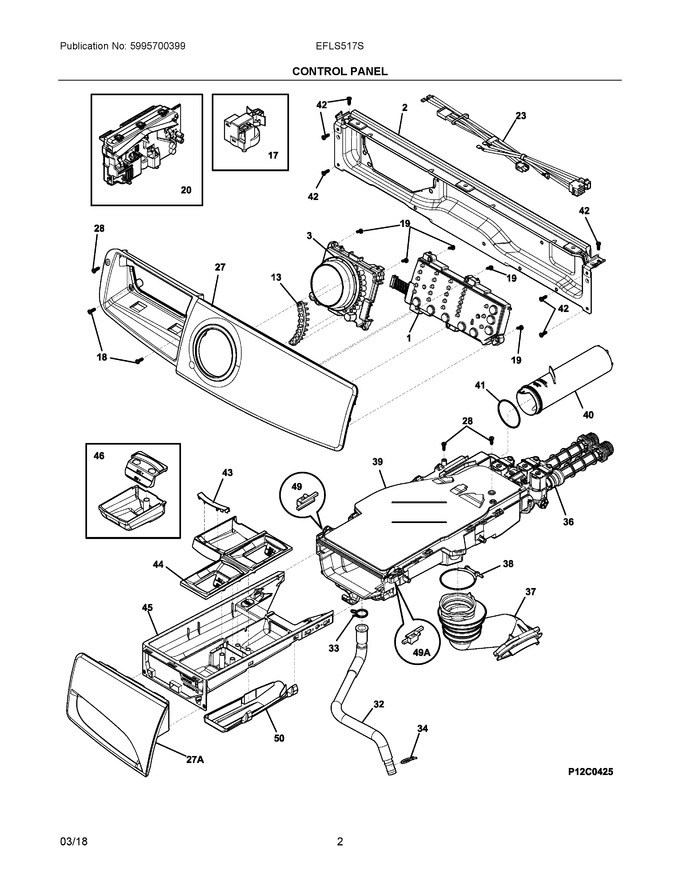

02 - Control Panel
03 - Cabinet/top
04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505611 | Board Assembly, Ui Programmed, Satellite, W/housing-screws |
|
$ 241.69 | |||||
| 2 | 5304505086 | Bracket, Control Panel |
|
$ 70.85 | |||||
| 3 | 5304505017 | Knob Assembly, Complete, W/boards |
|
$ 287.01 | |||||
| 13 | 5304505064 | Diffuser, Light |
|
$ 15.23 | |||||
| 17 | 5304505436 | Sensor Switch, Pressure |
|
Immediately | $ 51.64 | ||||
| 18 | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 26.58 | ||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 6.51 | |||||
| 20 | 5304505571 | Main Board, Assembly (high), Washer, W/housing |
|
$ 267.48 | |||||
| 23 | 5304505178 | Harness, Wiring, Main, W/drum Light |
|
$ 236.40 | |||||
| 27 | 5304505572 | Console Assembly, W/overlay |
|
$ 189.24 | |||||
| 28 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 32 | 134625500 | Hose, Disp-to-bellows |
|
$ 87.17 | |||||
| 33 | 134737300 | Clamp (Replaces: 131306216) |
|
$ 20.13 | |||||
| 34 | 5304528020 | Cable Tie, Push Mount, 5.20 Inch (Replaces: 131964400) |
|
$ 9.41 | |||||
| 36 | 5304505192 | Valve Assembly, Dispenser |
|
Immediately | $ 175.58 | ||||
| 37 | 134625700 | Hose, Disp-to-tub |
|
Immediately | $ 72.72 | ||||
| 38 | 134372400 | Clamp, Tub Hose |
|
$ 64.49 | |||||
| 39 | 5304505266 | Housing Assembly, Dispenser, W/valve |
|
$ 178.66 | |||||
| 40 | 134372103 | Tube, Disp-to-overflo |
|
$ 20.97 | |||||
| 41 | 134372200 | O-ring, Overflow Tube |
|
$ 13.74 | |||||
| 42 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304505207 | Indicator, Stain Treatment |
|
$ 14.81 | |||||
| 44 | 5304505336 | Cover, Drawer, W/graphics (Replaces: 134638321) |
|
Immediately | $ 59.57 | ||||
| 45 | 5304505336 | Drawer, Dispenser |
|
Immediately | $ 59.57 | ||||
| 46 | 137143800 | Cup, Dispenser, Liquid |
|
$ 27.47 | |||||
| 49 | 137286700 | Guide, Dispenser Dwr, Lh |
|
$ 15.75 | |||||
| 50 | 134638400 | Conveyor, Dispenser, Lower |
|
$ 22.64 | |||||
| 27A | 5304505573 | Handle Assembly, Drawer, W/overlay |
|
$ 155.61 | |||||
| 49A | 137286710 | Guide, Dispenser Dwr, Rh |
|
- | |||||
| NI | 5304505218 | Energy Guide |
|
- | |||||
| NIA | 134371300 | Gasket, Disp-to-valve |
|
Immediately | $ 51.04 | ||||
| NIA | 134178901 | Screw, 8-18ab X 0.455 |
|
$ 14.89 | |||||
| NIA | 134629400 | Screw, Mc5x8.5 Torx, Cabinet Mtg |
|
$ 12.76 | |||||
| NIA | 134407900 | Dampener, Vibration |
|
$ 17.01 |
