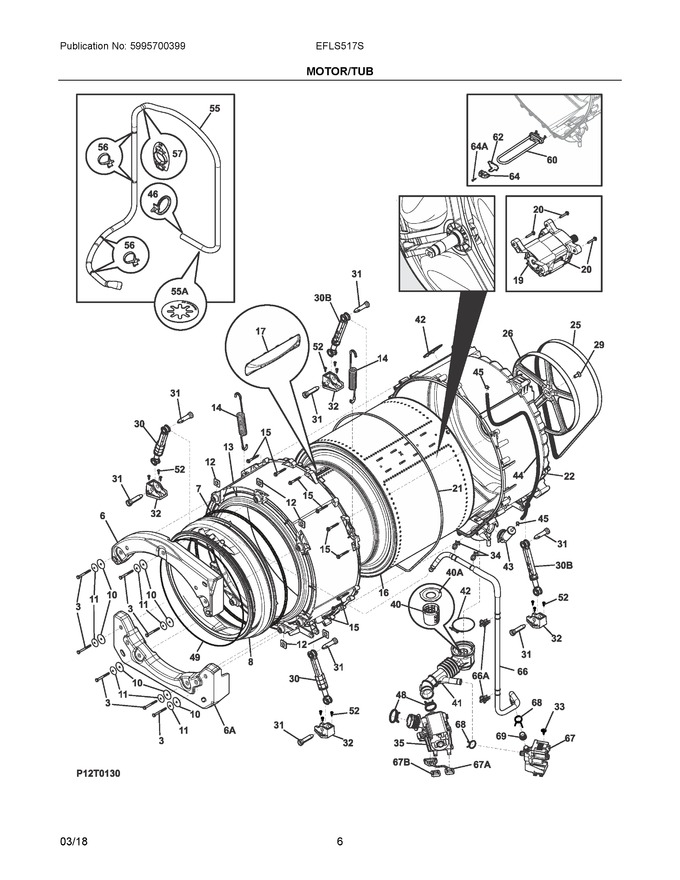

04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304505159 | Screw, Hex Head, 1/4", (7) |
|
$ 13.74 | |||||
| 6 | 5304505015 | Counterweight, Top |
|
$ 97.34 | |||||
| 7 | 134616200 | Spring, Boot Retainer |
|
Immediately | $ 49.28 | ||||
| 8 | 140004669044 | Bellows, Door Boot (Replaces: 5304505239) |
|
Immediately | $ 123.34 | ||||
| 10 | 5304505212 | Washer, Flat, (7), Conterweight |
|
$ 13.01 | |||||
| 11 | 131276900 | Washer, Bellville, Spring Steel |
|
$ 21.69 | |||||
| 12 | 5304505175 | Plate, Conterweight, (7), W/nut Insert |
|
$ 13.01 | |||||
| 13 | 5304533999 | Shell, Tub, Front (Replaces: 5304505155) |
|
$ 169.55 | |||||
| 14 | 5304505117 | Spring, Tub Supsension, (2) |
|
Immediately | $ 67.44 | ||||
| 15 | 131303900 | Screw, Hex Washer Head, 1/4-10a X 2.165 |
|
$ 15.60 | |||||
| 16 | 5304505337 | Drum Assembly, Spin Basket, W/vanes (Replaces: 5304505338) |
|
$ 498.10 | |||||
| 17 | 137263600 | Vane |
|
Immediately | $ 53.07 | ||||
| 19 | 5304505271 | Motor, Induction, Controlled |
|
Immediately | $ 315.59 | ||||
| 20 | 131303500 | Screw, 12-14ab X 1.50, Motor Mtg. |
|
$ 12.05 | |||||
| 21 | 5304520351 | O-ring, Tub (Replaces: 134361900) |
|
$ 98.32 | |||||
| 22 | 5304505157 | Shell, Outer Tub, Rear, W/bearing, Seal |
|
Immediately | $ 476.42 | ||||
| 25 | 134616700 | Belt, Drive, Poly-v |
|
Immediately | $ 60.15 | ||||
| 26 | 137317101 | Pulley, Drum Drive, Rear |
|
$ 109.25 | |||||
| 29 | 5304505380 | Bolt, W/washer, M10 X 1.5 |
|
Immediately | $ 34.88 | ||||
| 30 | 137412701 | Shock Absorber, Dual Stage |
|
Immediately | $ 76.15 | ||||
| 31 | 131268300 | Pin, Shock Mtg. |
|
Immediately | $ 12.76 | ||||
| 32 | 134363200 | Bracket, Shock Mtg. |
|
$ 19.13 | |||||
| 33 | 134160900 | Screw, Washer Hd, 10-16ab X 0.75 |
|
$ 12.05 | |||||
| 34 | 5304528020 | Cable Tie, Push Mount, 5.20 Inch (Replaces: 131964400) |
|
$ 9.41 | |||||
| 35 | 5304514775 | Pump Assembly, Drain, Jet System (Replaces: 5304505248) |
|
Immediately | $ 214.71 | ||||
| 40 | 5304505165 | Filter, Pump |
|
$ 16.63 | |||||
| 41 | 140026855043 | Hose, Coin Trap, Tub To Pump (Replaces: 5304505162) |
|
Immediately | $ 29.78 | ||||
| 42 | 134737300 | Clamp, Hose |
|
$ 20.13 | |||||
| 43 | 5304535282 | Chamber, Air (Replaces: 5304505199) |
|
$ 34.18 | |||||
| 44 | 5304535282 | Hose, Pressure Switch (Replaces: 5304505210) |
|
$ 34.18 | |||||
| 45 | 137087500 | Clamp, Hose |
|
$ 10.13 | |||||
| 46 | 134261300 | Clip, Drain Hose, Push-mount |
|
$ 12.05 | |||||
| 48 | 5304536802 | Clamp, Hose, Wire (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| 49 | 134616300 | Clamp, Bellows, Spring Held |
|
Immediately | $ 35.44 | ||||
| 52 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 55 | 137629209 | Drain Hose, Assembly, One Piece, W/cable Ties (Replaces: 137629202) |
|
Immediately | $ 58.27 | ||||
| 56 | 137003500 | Cable Tie, Push Mount |
|
$ 6.38 | |||||
| 57 | 134641100 | Bracket, Drain Hose Mtg, Rear |
|
$ 19.85 | |||||
| 60 | 5304534256 | Heating Element, (1000w)with Nt, 1000 W, With Nt (Replaces: 137488301) |
|
$ 90.70 | |||||
| 62 | 134642300 | Support, Heating Element |
|
$ 20.08 | |||||
| 64 | 5304505156 | Cover, Heater Support |
|
$ 15.63 | |||||
| 66 | 5304526694 | Hose, Recirculation, Pipe (Replaces: 5304504991) |
|
Immediately | $ 48.61 | ||||
| 67 | 5304514769 | Pump Assy, Recirculation, & Cw (Replaces: 5304505224) |
|
Immediately | $ 178.97 | ||||
| 68 | 131306217 | Clamp, Hose |
|
Immediately | $ 13.04 | ||||
| 69 | 5304526694 | Gasket, Hose, Rubber Plug (Replaces: 5304505434) |
|
Immediately | $ 48.61 | ||||
| 30B | 137412601 | Shock Absorber, Single Stage |
|
Immediately | $ 50.72 | ||||
| 40A | 5304505169 | Cover, Filter |
|
$ 19.52 | |||||
| 55A | 137385100 | Ring, Anti-syphon |
|
$ 14.18 | |||||
| 64A | 5304505439 | Screw, Heater Cover |
|
$ 9.41 | |||||
| 66A | 5304526694 | Clamp, Hose Support (Replaces: 5304505247) |
|
Immediately | $ 48.61 | ||||
| 67A | 137297000 | Pad, Pump |
|
$ 51.74 | |||||
| 67B | 5304505433 | Pad, Rubber |
|
$ 15.18 | |||||
| 6A | 5304505016 | Counterweight, Bottom |
|
$ 144.79 | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NIA | 134637200 | Screw, #10-16x1.125, Hexwasher Head |
|
$ 14.18 | |||||
| NIA | 137110800 | Cushion, Shock Bracket, Left Rear |
|
$ 13.46 |
