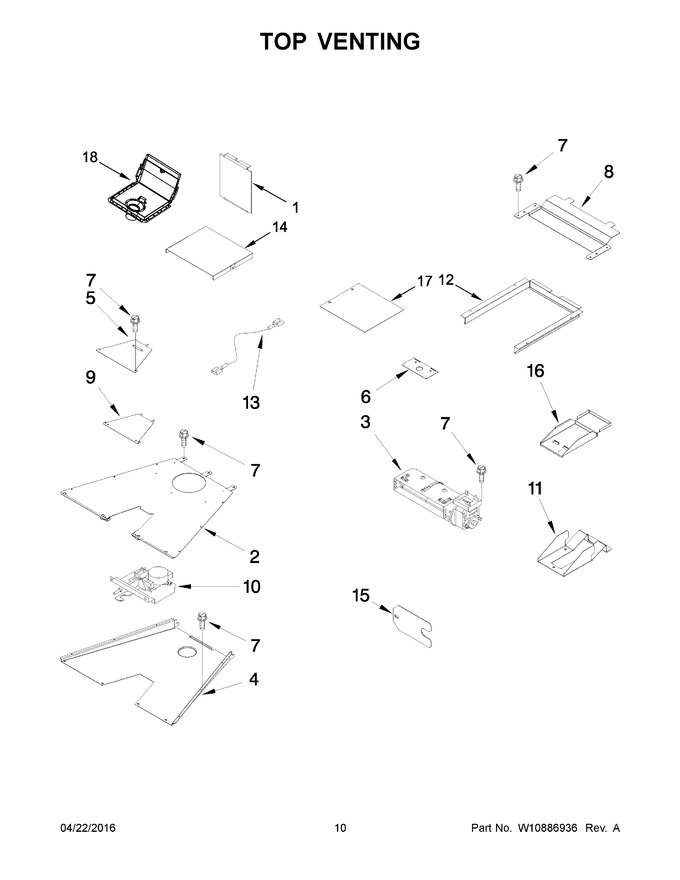

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10246087 | Insulation, Chimney |
|
- | |||||
| 2 | W10299182 | Vent, Cooling Top |
|
Immediately | $ 129.39 | ||||
| 3 | WPW10245511 | Blower 60mm (Replaces: W10245511) |
|
Immediately | $ 275.42 | ||||
| 4 | W10349015 | Vent, Cooling Bottom |
|
Immediately | $ 172.35 | ||||
| 5 | W10160875 | Plate, Cooling Latch |
|
- | |||||
| 6 | W10115855 | Holder, Strain Relief |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | W10145748 | Bracket, Cooling Fan |
|
- | |||||
| 9 | W10160858 | Cover, Latch |
|
$ 65.95 | |||||
| 10 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 280.85 | ||||
| 11 | W10308039 | Bracket, Bake Alignement |
|
- | |||||
| 12 | W10145363 | Duct, Primary Air |
|
- | |||||
| 13 | W10146037 | Wire, Electrode |
|
$ 28.52 | |||||
| 14 | W10246086 | Retainer, Insulation |
|
- | |||||
| 15 | W10145381 | Cover, Channel |
|
- | |||||
| 16 | W10249337 | Support, Control |
|
- | |||||
| 17 | W10239444 | Seal, Control |
|
- | |||||
| 18 | W10340579 | Assembly, Chimney Box |
|
- |
