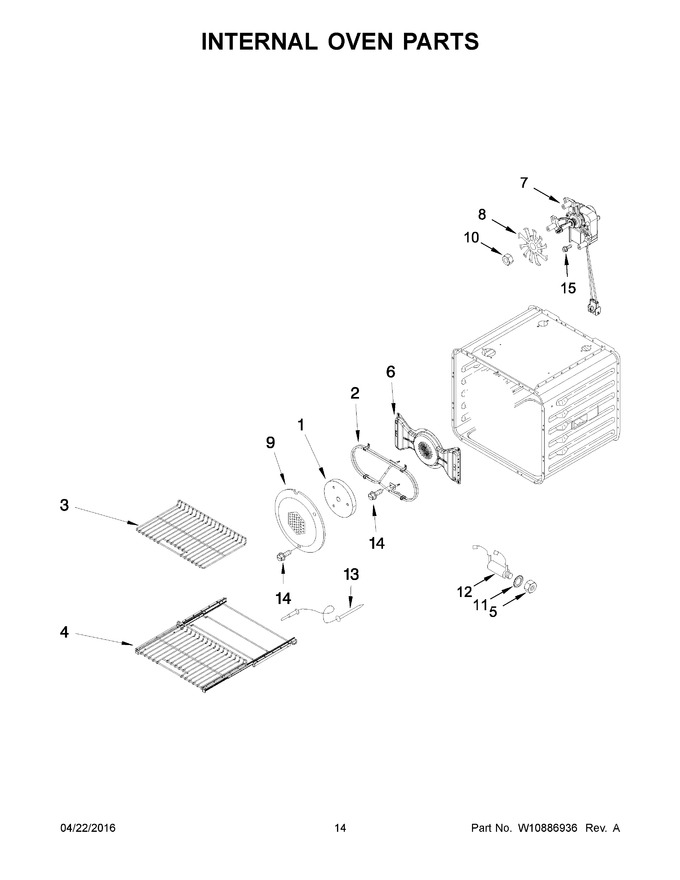

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 23.23 | ||||
| 2 | W11033310 | Element, Convection (Replaces: W10145949) |
|
$ 139.10 | |||||
| 3 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 105.40 | |||||
| 4 | W11186364 | Rack, Oven (sliding) (Replaces: W10570865) |
|
$ 248.35 | |||||
| 5 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.26 | |||||
| 6 | W10246060 | Baffle, Convection |
|
$ 154.65 | |||||
| 7 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 284.83 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
$ 76.01 | |||||
| 9 | W10261523 | Plate, Fan |
|
$ 66.73 | |||||
| 10 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 11.26 | |||||
| 11 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.49 | |||||
| 12 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 14 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 15 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.67 |
