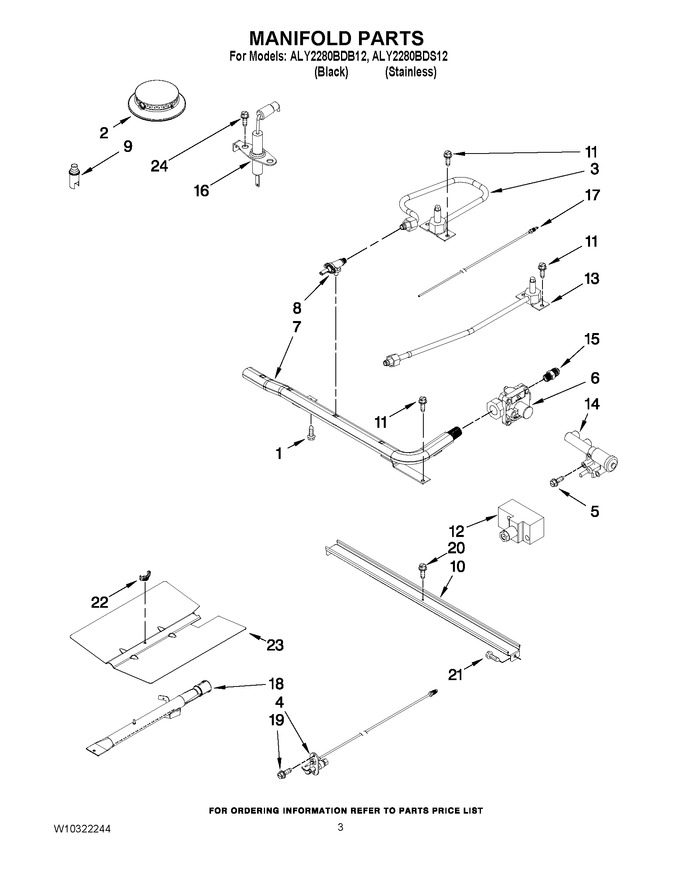

01 - Cooktop Parts
02 - Door Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P639-60 | Screw |
|
$ 5.53 | |||||
| 2 | WP3412D025-09 | Burner (Replaces: 3412D025-09) |
|
$ 170.85 | |||||
| 3 | 7507P253-60 | Fitting, Orifice (front) |
|
- | |||||
| 4 | WP7505P327-60 | Burner, Pilot (Replaces: 7505P327-60) |
|
$ 95.00 | |||||
| 5 | WPY706189 | Screw (Replaces: 7101P347-60) |
|
Immediately | $ 6.47 | ||||
| 6 | 7510P098-60 | Regulator |
|
- | |||||
| 7 | 7513P467-60 | Pipe, Manifold |
|
$ 214.70 | |||||
| 8 | 7502P525-60 | Valve, Burner (4) (front) |
|
- | |||||
| 8 | 7502P526-60 | Valve, Burner (4) (lr, Rr) |
|
- | |||||
| 9 | 7538P001-60 | Venturi, Burner |
|
- | |||||
| 10 | 3807F747-45 | Support, Burner |
|
- | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 12 | 7527P115-60 | Elbow, Block |
|
- | |||||
| 13 | 7507P401-60 | Fitting, Orifice (lr, Rr) |
|
- | |||||
| 14 | 7432P097-60 | Ignotor, Piezo |
|
$ 75.36 | |||||
| 15 | 7507P388-60 | Fitting, Union |
|
- | |||||
| 16 | 74004053 | Electrode, Top Burner (Replaces: 7432P100-60) |
|
Immediately | $ 24.25 | ||||
| 17 | 7506P412-60 | Tubing, Gas (1/4`` Od X 35.5``) |
|
- | |||||
| 17 | 7506P414-60 | Tubing, Gas (3/16`` Od X 40``) |
|
- | |||||
| 18 | 7505P360-60 | Burner, Oven |
|
- | |||||
| 19 | WP3400094 | Screw (Replaces: 7101P188-60) |
|
$ 7.14 | |||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 21 | WP7101P498-60 | Screw (Replaces: 7101P498-60) |
|
$ 6.74 | |||||
| 22 | 7103P030-60 | Wing Nut |
|
$ 6.37 | |||||
| 23 | 3601P360-45 | Spreader, Flame |
|
$ 10.98 | |||||
| 24 | WP59002061 | Screw (Replaces: 7101P335-60) |
|
$ 6.98 |
