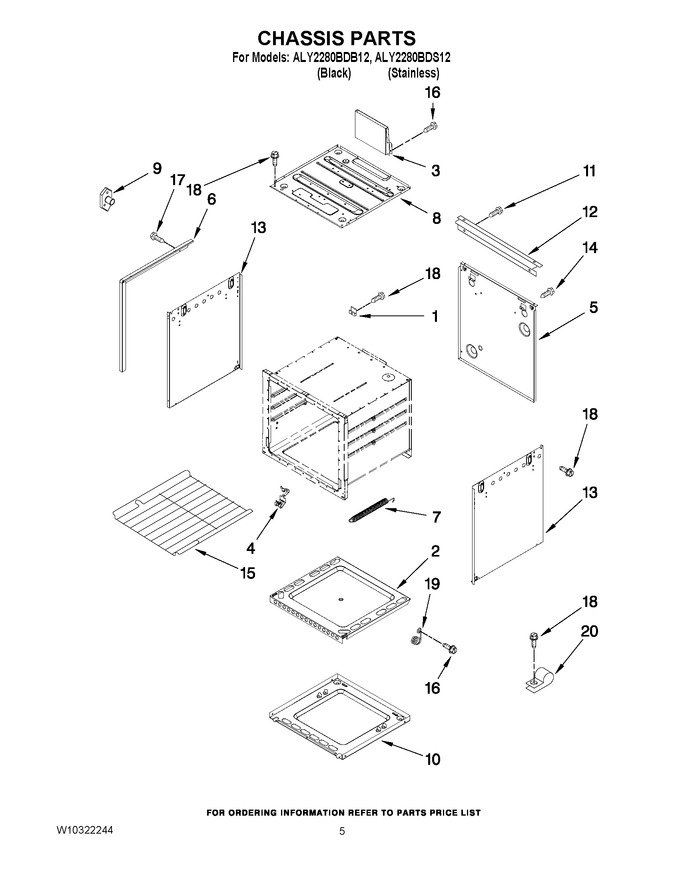

04 - Chassis Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7112P142-60		Clip, Top		Appelez-nous	-
2	2205F050-19		Bottom, Oven		Appelez-nous	-
3	4006W237-51		Box, Flue		Appelez-nous	-
4	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)			Immediately	$ 11.07
5	4002F330-51		Back, Main		Appelez-nous	-
6	3608F147-70		Trim, Side (right)		Appelez-nous	-
6	3608F148-70		Trim, Side (left)		Appelez-nous	-
7	7803P053-60		Spring, Door		Appelez-nous	-
8	4011F460-51		Bottom, Burner Box				$ 29.69
9	7103P109-60		T-nut		Appelez-nous	-
10	4011F325-51		Bottom, Main		Appelez-nous	-
11	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
12	3604F274-70		Shield, Defector		Appelez-nous	-
13	4016F061-51		Panel, Side (right)		Appelez-nous	-
13	4016F062-51		Panel, Side (right)		Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 12.62
15	7801P155-60		Rack, Oven		Appelez-nous	-
16	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
17	7101P301-60		Screw		Appelez-nous	-
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
19	7112P065-60		Clip, Oven Bottom		Appelez-nous	-
20	WP488366		Clamp, Wire   (Replaces: 7111P009-60)				$ 10.06
NI	7002P105-60		Insulation, Wrap		Appelez-nous	-
NI	7002P429-60		Insulation, Back		Appelez-nous	-
