SELECT A DIAGRAM

01 - Cover Sheet

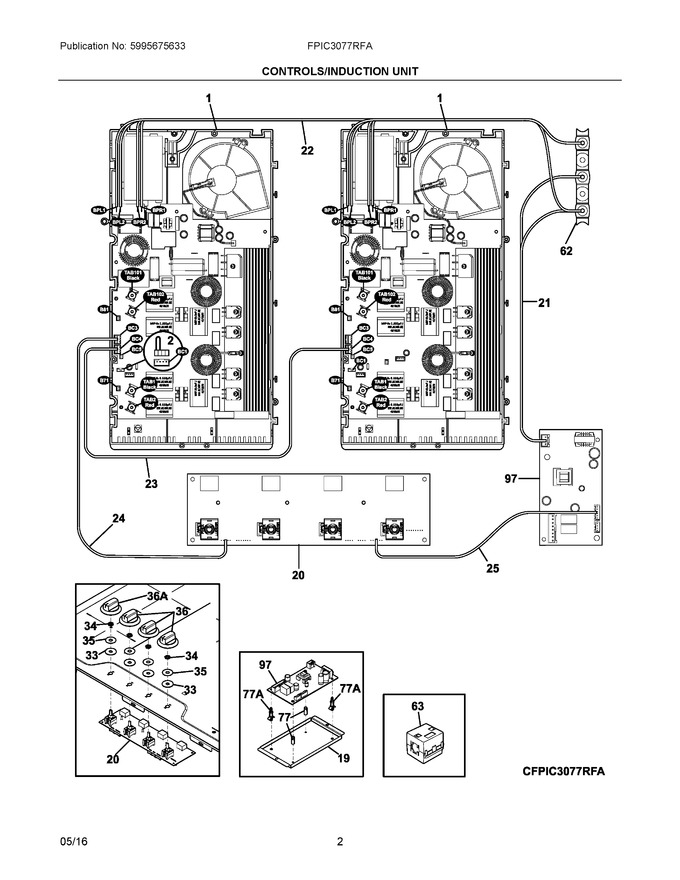

02 - Controls/induction Unit


03 - Main Top/surface Units


04 - Wiring Diagram


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	357266088		Generator, Circuit Board, Induction, 2 Zone   (Replaces: 357266097)			Immediately	$ 506.77
2	5304506068		Wire, Jumper, Lh Zone, Bc1			Immediately	$ 9.21
19	5304506069		Box, Protection, Smps1				$ 11.67
20	808843402		Board Assembly, User Interface, Larissa   (Replaces: 808843401)				$ 667.98
21	5304506070		Harness, Wiring, Power Board, To Term. Block				$ 18.66
22	5304506071		Harness, Wiring, Main		Appelez-nous	-
23	318578332		Harness, Wiring, Communication			Immediately	$ 54.35
24	5304506072		Harness, Wiring, Ui Board, To Lh Zone				$ 9.96
25	5304506073		Harness, Wiring, Ui Board, To Power Board				$ 15.17
33	318146012		Bushing, Control, (4)				$ 15.60
34	316247700		Nut, Mounting				$ 18.20
35	318086007		Washer, Flat, (4), Control				$ 9.93
36	5304506074		Knob, Control, Single				$ 90.25
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
63	5304506076		Filter, Ferrite Choke			Immediately	$ 42.01
77	316247900		Spacer, Power Board				$ 44.65
97	808844401		Board Assembly, Power			Immediately	$ 299.96
36A	5304506075		Knob, Control, Dual				$ 87.97
77A	316114100		Spacer				$ 60.96
NI	202855101		Holder, Cable				$ 1.42
NI	5304506077		Box & Wires Assy		Appelez-nous	-
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NIA	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIA	305309608		Screw, M4		Appelez-nous	-
NIB	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
