01 - Cover Sheet
02 - Controls/induction Unit

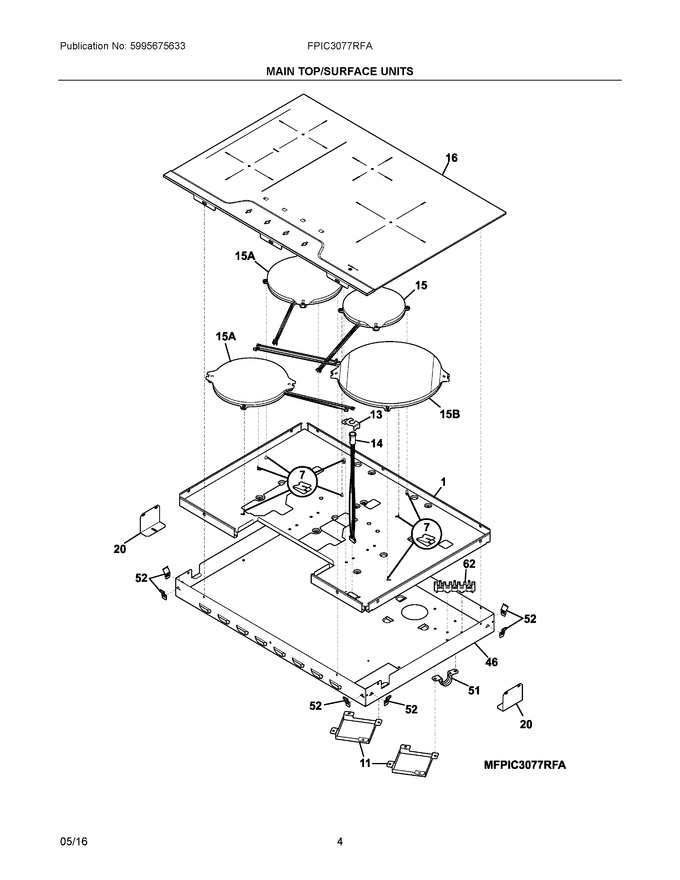

03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506078 | Carrier Panel, Induction Coils, 30 |
|
- | |||||
| 7 | 808697402 | Spring, Induction Coil |
|
$ 3.79 | |||||
| 11 | 5304506079 | Deflector, Air |
|
- | |||||
| 13 | 5304506080 | Bracket, Indicator Light |
|
- | |||||
| 14 | 5304506081 | Light, Indicator |
|
$ 39.44 | |||||
| 15 | 357226265 | Element, Induction Coil, 140 Mm |
|
Immediately | $ 146.36 | ||||
| 16 | 305638970 | Maintop, Glass, Stainless/blk (Replaces: 5304506083) |
|
Immediately | $ 1,182.56 | ||||
| 20 | 318121912 | Bracket, Retainer, (2) |
|
$ 21.95 | |||||
| 46 | 5304506084 | Box, Protection, 30 |
|
- | |||||
| 51 | 318389600 | Bracket, Conduit Mtg. |
|
$ 12.76 | |||||
| 52 | 387174602 | Bracket, Spring, Cooktop Mtg. |
|
$ 5.67 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 15A | 357226364 | Element, Induction Coil, 180 Mm |
|
$ 174.93 | |||||
| 15B | 5304506100 | Element, Induction Coil, 260 Mm (Replaces: 5304506082) |
|
Immediately | $ 271.14 | ||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NIA | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| NIA | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIB | 305309608 | Screw, M4 |
|
- | |||||
| NIB | 5303307980 | Screw, 8-32 X 0.437, (4) |
|
Immediately | $ 14.18 | ||||
| NIC | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
