SELECT A DIAGRAM

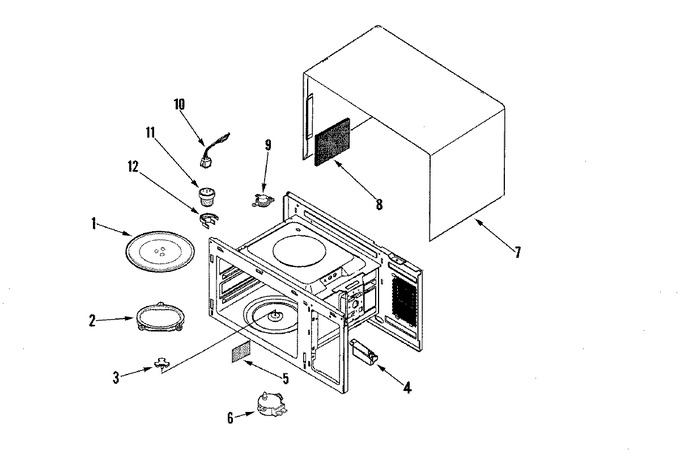

01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE74-20002C | Tray-cooking | 10 |
|
$ 66.71 | ||||
| 2 | DE92-90189V | Assy-guide Roller | 10 |
|
$ 40.98 | ||||
| 3 | DE67-00121A | Coupler | 10 |
|
$ 3.64 | ||||
| 4 | DE66-90113A | Lever-door | 10 |
|
$ 17.58 | ||||
| 5 | DE71-60449A | Cover-mgt | 10 |
|
- | ||||
| 6 | 555555 | Motor-drive (Replaces: DE31-10154A) | 10 |
|
$ 151.94 | ||||
| 7 | DE70-00163P | Panel, Outer (blk) | 10 |
|
- | ||||
| 9 | 555555 | Thermostat (Replaces: DE47-20016A) | 10 |
|
$ 151.94 | ||||
| 10 | DE39-00072A | Wire Harness-s | 10 |
|
- | ||||
| 11 | DE32-60013A | Sensor-gas | 10 |
|
$ 94.70 | ||||
| 12 | DE61-90111A | Holder-sensor | 10 |
|
$ 0.88 |
