SELECT A DIAGRAM
01 - Body/cavity

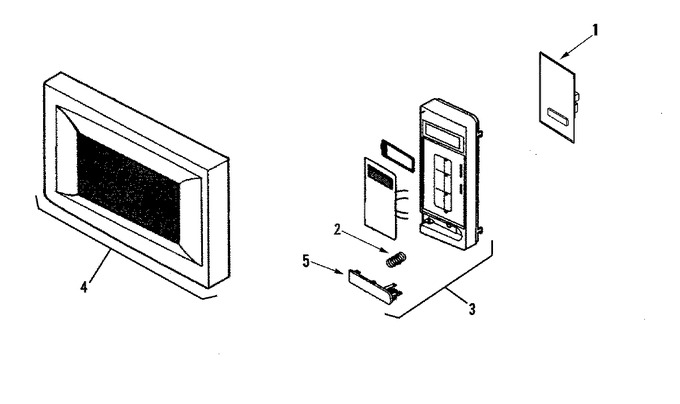

02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10127140 | Board, Control | 10 |
|
- | ||||
| 2 | DE61-70026A | Spring-button | 10 |
|
Immediately | $ 0.85 | |||
| 3 | DE94-00444F | Panel, Control (blk) | 10 |
|
- | ||||
| 4 | DE94-00443N | Door Assembly (blk) | 10 |
|
- | ||||
| 5 | DE67-00087D | Button, Push (blk) | 10 |
|
- |
