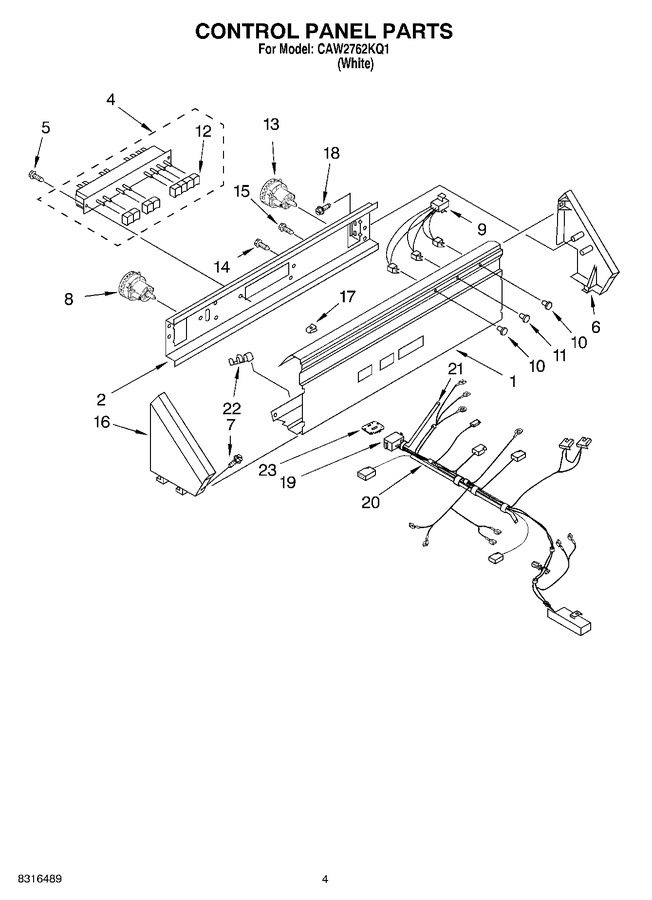

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8524814		Panel, Console		Appelez-nous	-
2	3978858		Bracket, Control		Appelez-nous	-
4	3954774		Switch, Cycle Selector (includes Illus. No. 12)		Appelez-nous	-
5	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
6	3949740		End Cap (r.h.)				$ 73.50
7	8281182		Screw (2)				$ 5.33
8	8524802		Pressure Switch, Twist Mount		Appelez-nous	-
9	W10858647		Lights, Indicator   (Replaces: 3352457)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	WPW10330137		Pushbutton (8)   (Replaces: 8316433)			Immediately	$ 305.60
13	8524803		Assembly, Pressure Switch-t		Appelez-nous	-
14	3400073		Screw, 10-24 X 3/8		Appelez-nous	-
15	WP90767		Screw, 8-18 X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
16	3949734		End Cap (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WPW10109200		Screw, End Cap To Bracket (4)   (Replaces: 97787)			Immediately	$ 7.20
19	3954780		Harness, Wiring (includes Items 20 & 21) (for Detail See Pages 12 & 13)		Appelez-nous	-
20	WP353244		Hose, Pressure Switch To Air Dome   (Replaces: 8524801)			Immediately	$ 53.94
21	WP353244		Hose, Pressure Switch Link   (Replaces: 8524791)			Immediately	$ 53.94
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
23	3955787		Control-atc		Appelez-nous	-
