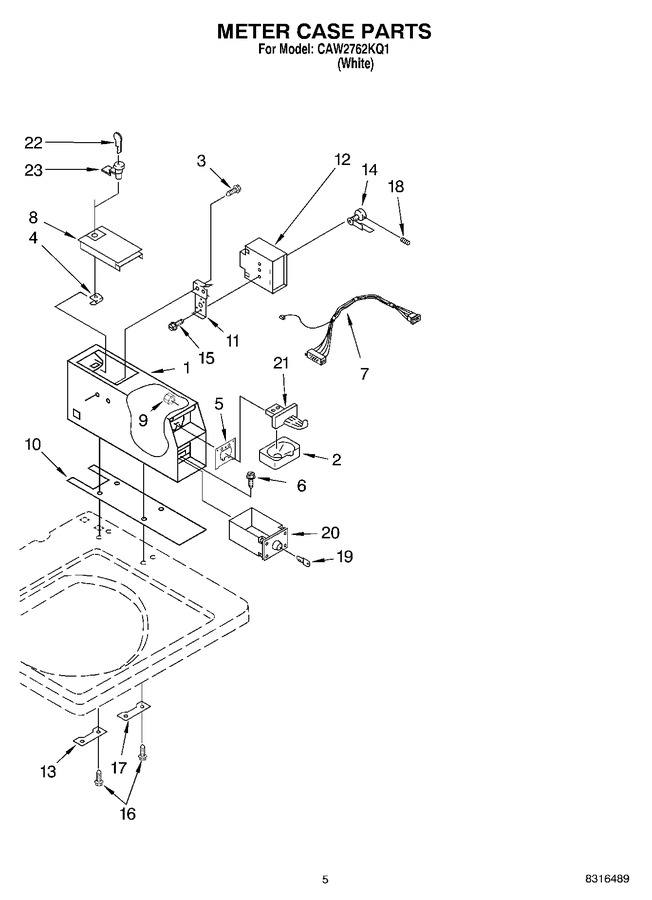

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10461200 | Meter Case (Replaces: 3406994) |
|
Immediately | $ 344.90 | ||||
| 2 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 3 | 339805 | Screw, 10-32 X 3/16 |
|
$ 12.05 | |||||
| 4 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 5 | 279950 | Plate, Adapter (includes 2) (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 6 | W11715721 | Bolt (5/16-24 X 1) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 6 | 3353994 | Bolt (5/16 - 18 X 2 1/2) |
|
- | |||||
| 7 | 3955640 | Wire Harness |
|
$ 125.67 | |||||
| 8 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 9 | WP3400029 | Nut, Adapter Plate (3) (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 10 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 11 | 385575 | Bracket, Timer |
|
$ 94.31 | |||||
| 12 | 3955783 | Timer, 60 Hz. |
|
$ 171.95 | |||||
| 13 | 3353813 | Plate, Mounting |
|
$ 47.08 | |||||
| 14 | WP354987 | E-ring (Replaces: 354987) |
|
Immediately | $ 10.58 | ||||
| 14 | 385571 | Clutch, Timer |
|
$ 42.89 | |||||
| 15 | WP3400064 | Screw, Timer (Replaces: 3400064) |
|
$ 6.26 | |||||
| 16 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 17 | 3347825 | Plate, Mounting |
|
- | |||||
| 18 | 98654 | Screw, Set |
|
- | |||||
| 22 | W10123497 | Fascia, Disp (black) |
|
- | |||||
| 23 | C4889201 | Line- Suct |
|
- | |||||
| 23 | 8571937 | Knob |
|
$ 55.82 | |||||
| 23 | DTS60 | Thermostat (Replaces: B0592401) |
|
Immediately | $ 12.22 |
