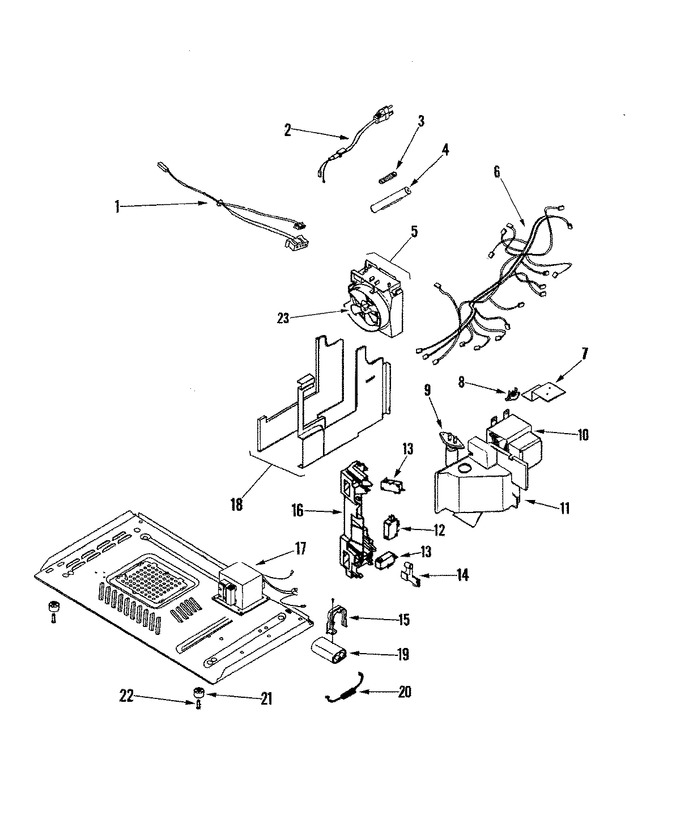

01 - Base/internal Controls
02 - Body/cavity
03 - Control Panel/door Assembly
04 - Convection Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE39-00220A | Wire Harness-b | 10 |
|
- | ||||
| 2 | DE39-10102F | Assy Power Cord | 10 |
|
$ 43.69 | ||||
| 3 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) | 10 |
|
Immediately | $ 10.31 | |||
| 4 | DE47-40025A | Holder, Fuse | 10 |
|
- | ||||
| 5 | DE31-00001G | Assy-motor Fan | 10 |
|
- | ||||
| 6 | DE96-00391A | Harness, Wire | 10 |
|
- | ||||
| 7 | DE61-50490A | Bracket-tco | 10 |
|
$ 1.66 | ||||
| 8 | DE47-20009A | Thermostat | 10 |
|
$ 17.58 | ||||
| 9 | 4713-001012 | Lamp-incandescent | 10 |
|
$ 40.81 | ||||
| 10 | WPW10126794 | Magnetron (Replaces: W10126792) | 10 |
|
$ 282.22 | ||||
| 11 | DE63-00107A | Cover-air | 10 |
|
- | ||||
| 12 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 13 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 14 | DE66-90054B | Lever-switch | 10 |
|
- | ||||
| 15 | DE61-50106A | Bracket, Capacitor | 10 |
|
- | ||||
| 16 | DE66-40021B | Latch-body | 10 |
|
- | ||||
| 17 | DE26-00061B | Trans-h.v | 10 |
|
$ 181.92 | ||||
| 18 | DE71-00066A | Cover-adiabatic-r | 10 |
|
- | ||||
| 19 | 2501-001011 | Capacitor | 10 |
|
Immediately | $ 74.17 | |||
| 20 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) | 10 |
|
Immediately | $ 15.89 | |||
| 21 | DE61-40065A | Foot | 10 |
|
$ 17.58 | ||||
| 22 | DE60-60025A | Pin, Foot | 10 |
|
$ 0.85 | ||||
| 23 | DE31-90051A | Blade-fan | 10 |
|
$ 6.95 |
