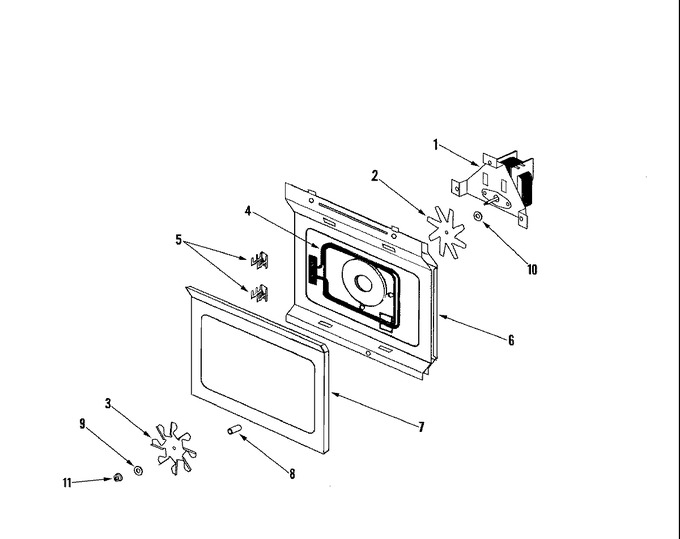

04 - Convection Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE31-10171B | Motor-convection | 10 |
|
- | ||||
| 2 | DE31-90020A | Blade-fan | 10 |
|
- | ||||
| 3 | DE31-90019A | Blade-fan | 10 |
|
- | ||||
| 4 | DE47-70077C | Heater | 10 |
|
- | ||||
| 5 | DE61-50484A | Bracket-heater | 10 |
|
- | ||||
| 6 | DE92-90487A | Assy-cover Casing | 10 |
|
- | ||||
| 7 | DE62-00008A | Adiabatic-casing | 10 |
|
- | ||||
| 8 | DE72-30016B | Bush-motor | 10 |
|
- | ||||
| 9 | DE60-40026B | Washer-plain | 10 |
|
- | ||||
| 10 | DE60-40014B | Washer-c Motor | 10 |
|
$ 3.23 | ||||
| 11 | DE60-30016A | Nut-flange | 10 |
|
Immediately | $ 17.58 |
