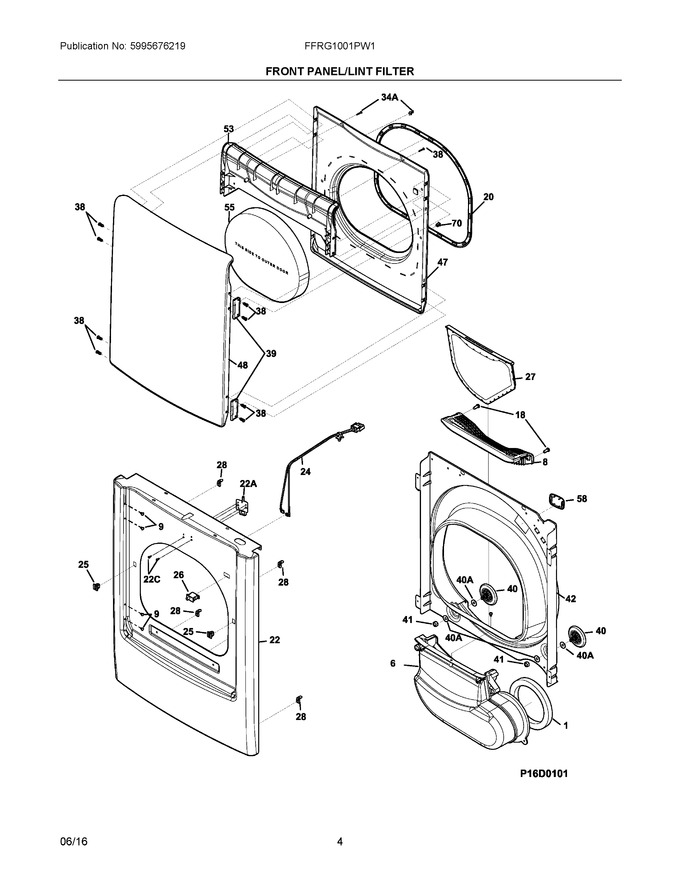

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137068200		Seal, Air Duct				$ 14.81
6	134710705		Duct, Air, Gray				$ 208.95
8	137554110		Cover, Lint Grill			Immediately	$ 111.80
9	131633200		Plug, White				$ 15.90
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137553402		Gasket, Door Seal				$ 87.12
22	137554310		Panel, Front, White				$ 232.47
24	137364800		Harness, Door Switch		Appelez-nous	-
25	131658800		Door Catch, Upper			Immediately	$ 68.38
26	134813600		Switch, Door			Immediately	$ 43.09
27	137560710		Filter, Lint, Complete				$ 121.02
28	137034500		Clip, Mounting, Cabinet Front				$ 43.24
38	137361500		Screw 8-18x0.711 Combo				$ 7.79
39	137365620		Hinge, Piano Style 3in				$ 22.58
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	5304506382		Bulkhead, Panel, Front		Appelez-nous	-
47	137554210		Door, Inner, White				$ 192.99
48	137542310		Door, Outer, White		Appelez-nous	-
53	137542400		Handle, Door		Appelez-nous	-
55	137365800		Spacer, Fsd Door		Appelez-nous	-
58	137576600		Plug, Light Hole   (Replaces: 131870700)			Immediately	$ 14.18
70	134417500		Plug, Rectangular, White				$ 16.22
22A	137577300		Lock, Door				$ 63.84
22C	5304490803		Screw, Splnd Ab St/c, 10-16 X .50		Appelez-nous	-
34A	137285100		Screw, Pan Head, #8-18x.750				$ 17.53
40A	134716700		Washer, Flat				$ 2.12
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NIA	137555201		Striker, Front Panel				$ 40.85
NIA	134430300		Screw, Indt Pan Head, 10-14 X 0.625, Quadrex			Immediately	$ 14.89
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	137116600		Gasket, Front Panel				$ 151.53
NIB	137576600		Plug, Light Hole			Immediately	$ 14.18
NIC	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 14.89
