SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram

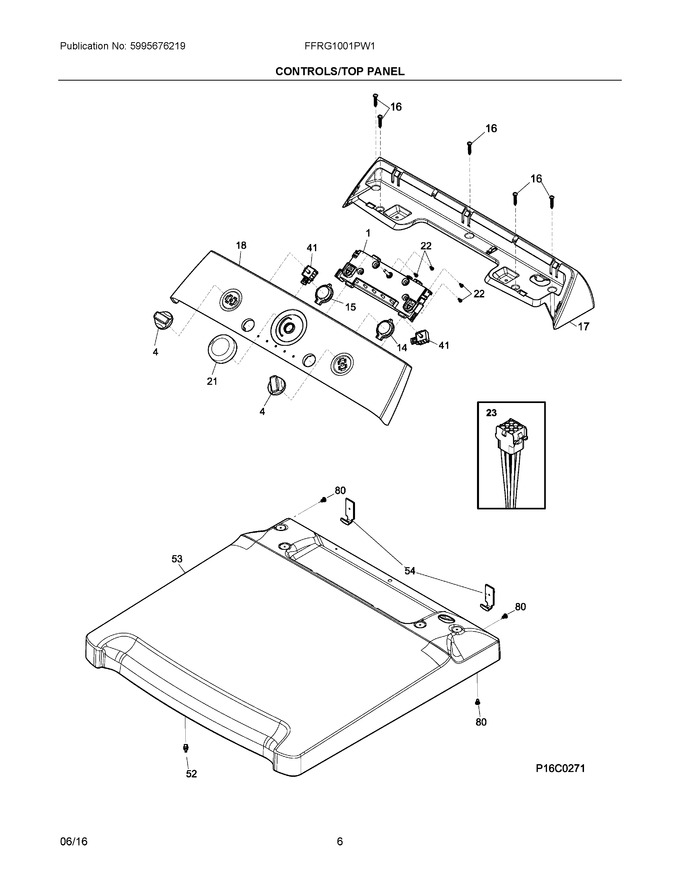

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137571100		Control Board, Pc W/housing				$ 177.12
4	5304492302		Knob, Option Assy		Appelez-nous	-
14	5304506402		Button, Push Start		Appelez-nous	-
15	5304506403		Button, Push Cancel		Appelez-nous	-
16	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
17	137542600		Console, Td Lower, White		Appelez-nous	-
18	137571000		Panel, Dec Control				$ 184.38
21	5304492301		Knob, Center Assy		Appelez-nous	-
22	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
23	5304506407		Harness, Wiring, Main, Gas		Appelez-nous	-
41	137261000		Switch, Rotary, 4 Pos				$ 102.65
52	137362600		Pin, Panel Locator				$ 35.44
53	137542210		Panel, Top, White		Appelez-nous	-
54	137329700		Bracket, Hinge, Rear		Appelez-nous	-
80	137361500		Screw 8-18x0.711 Combo				$ 7.79
NIA	137541400		Harness, 2 Option Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
