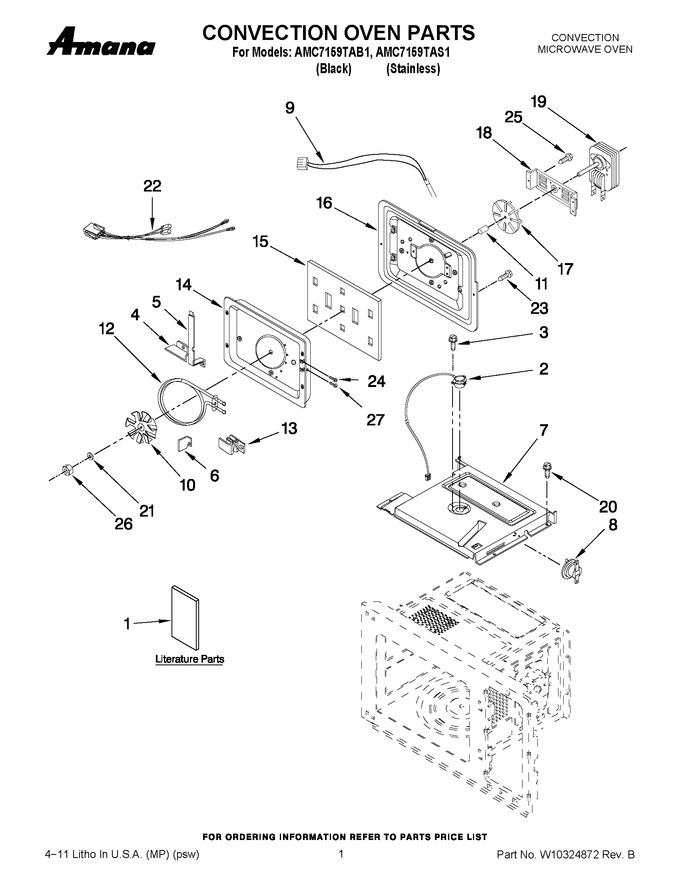

01 - Convection Oven Parts


02 - Oven Interior Parts


03 - Oven Cavity Parts


04 - Base Plate Parts


05 - Latch Board Parts


06 - Control Panel Parts


07 - Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10134324		Tech Sheet		Appelez-nous	-
1	W10208124		U & C Guide		Appelez-nous	-
2	8171878		Sensor		Appelez-nous	-
3	4358450		Screw		Appelez-nous	-
4	8183575		Bracket, Center		Appelez-nous	-
5	8183574		Bracket, Left		Appelez-nous	-
6	8183576		Bracket, Lower		Appelez-nous	-
7	W10153234		Insulator		Appelez-nous	-
8	8183694		Thermostat		Appelez-nous	-
9	8183583		Thermistor		Appelez-nous	-
10	8183582		Fan		Appelez-nous	-
11	4358460		Bushing		Appelez-nous	-
12	8183581		Convection Element		Appelez-nous	-
13	8183577		Clip, Conv Element		Appelez-nous	-
14	8183567		Duct, Magnetron		Appelez-nous	-
15	W10153235		Insulation		Appelez-nous	-
16	8183566		Shield, Back Insul		Appelez-nous	-
17	4358466		Fan Blade		Appelez-nous	-
18	4358467		Bracket, Convection Motor		Appelez-nous	-
19	8183565		Convection Motor		Appelez-nous	-
20	4358192		Screw		Appelez-nous	-
21	WP8533914		Washer   (Replaces: 4358477)			Immediately	$ 4.04
22	8183591		Harness, Wire		Appelez-nous	-
23	W11245710		Screw   (Replaces: 4358362)			Immediately	$ 12.65
24	8183572		Screw		Appelez-nous	-
25	4358380		Screw				$ 11.75
26	4358476		Nut		Appelez-nous	-
27	4344826		Screw   (Replaces: 4358474)				$ 14.31

    View Diagram in Separate Window       Print Part List
